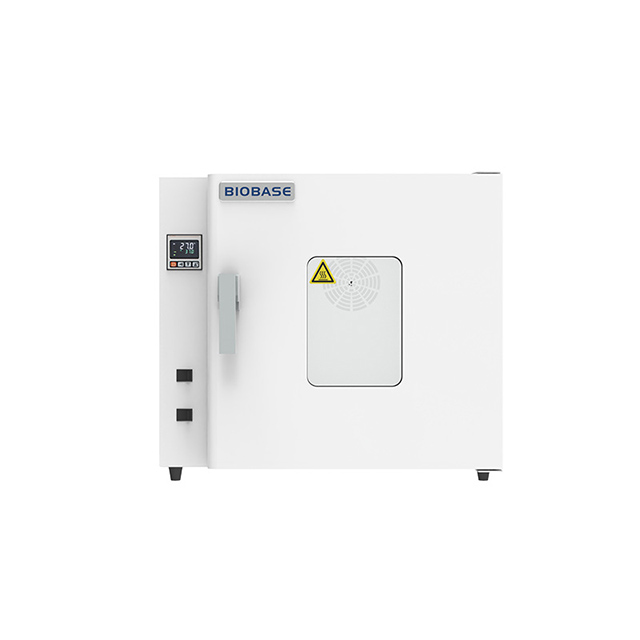

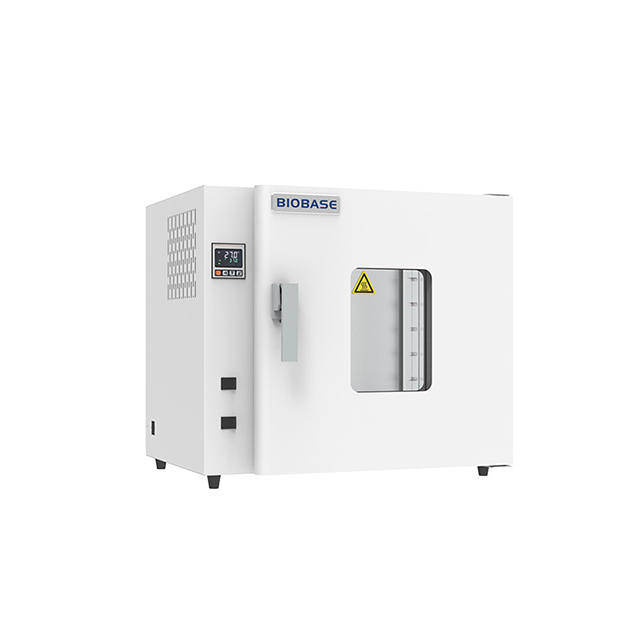

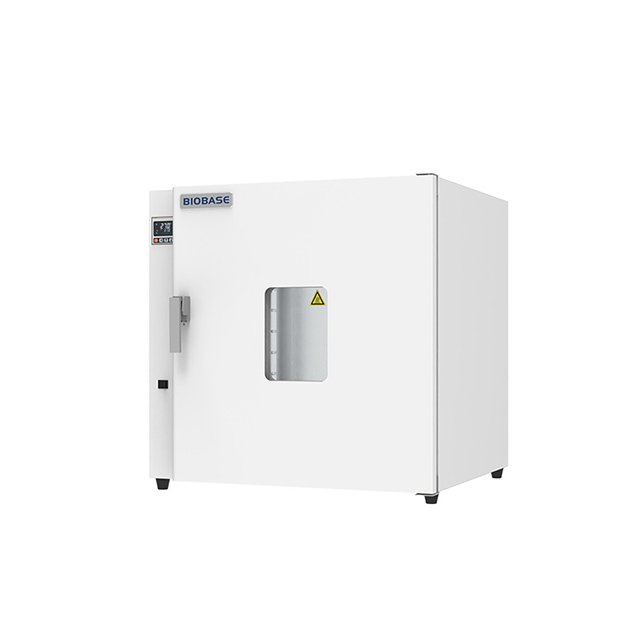

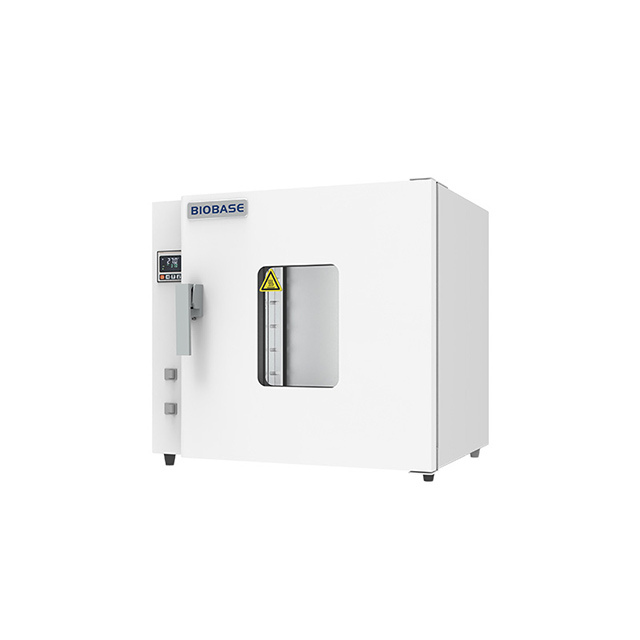

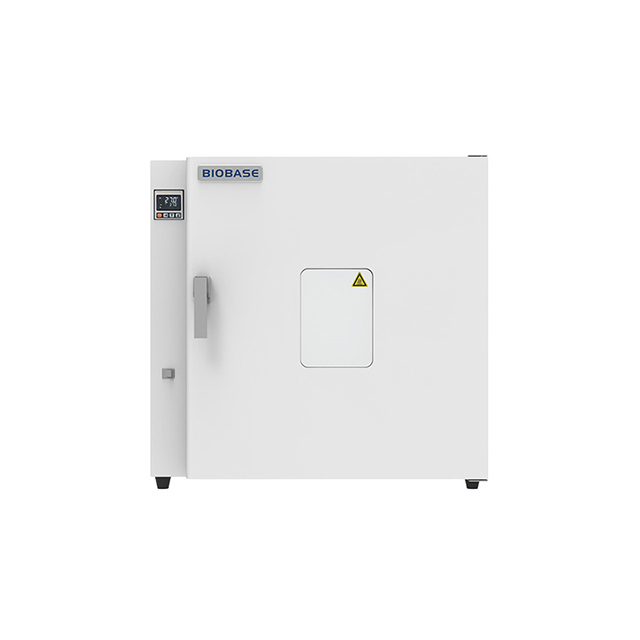

BJPX-HGZ23 BJPX-HGZ45 BJPX-HGZ54 BJPX-HGZ75 BJPX-HGZ88 BJPX-HGZ138 BJPX-HGZ160 BJPX-HGZ225 BJPX-HGZ270
BIOBASE
Features：
1. LCD display screen, with built-in temperature deviation calibration function.
2. The inner tank is made of high-quality stainless steel, with semi-circular four-corner design.
3. It has an over-temperature alarm system function to prevent damage to the instrument due to excessive temperature.
4. The unique thermal circulation circuit has a fan to form forced convection, so that the average temperature in the working room is better.
5. The perspective window structure design is convenient for observing the internal situation of the equipment.
6. Good thermal insulation performance and low surface temperature of the equipment.

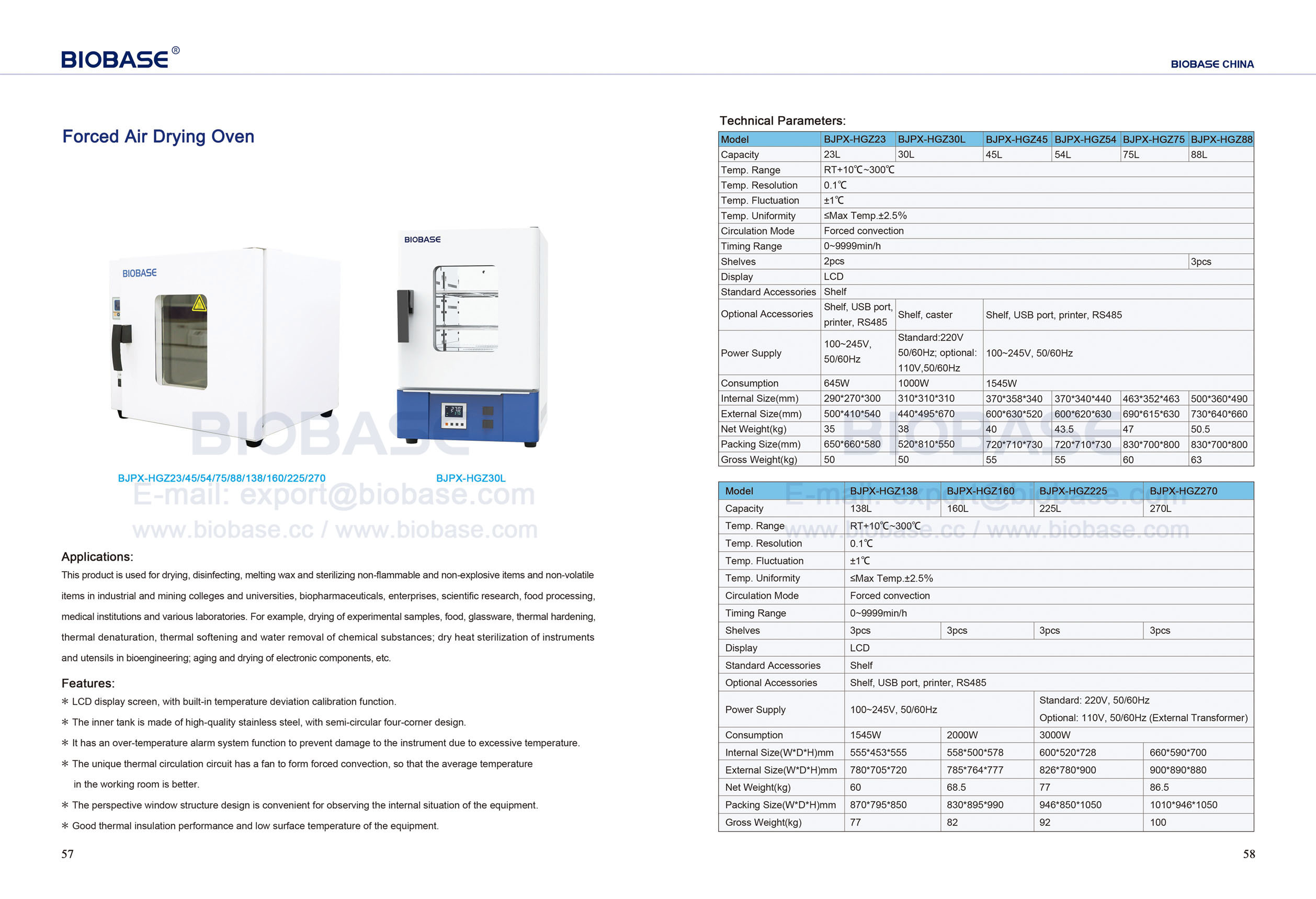

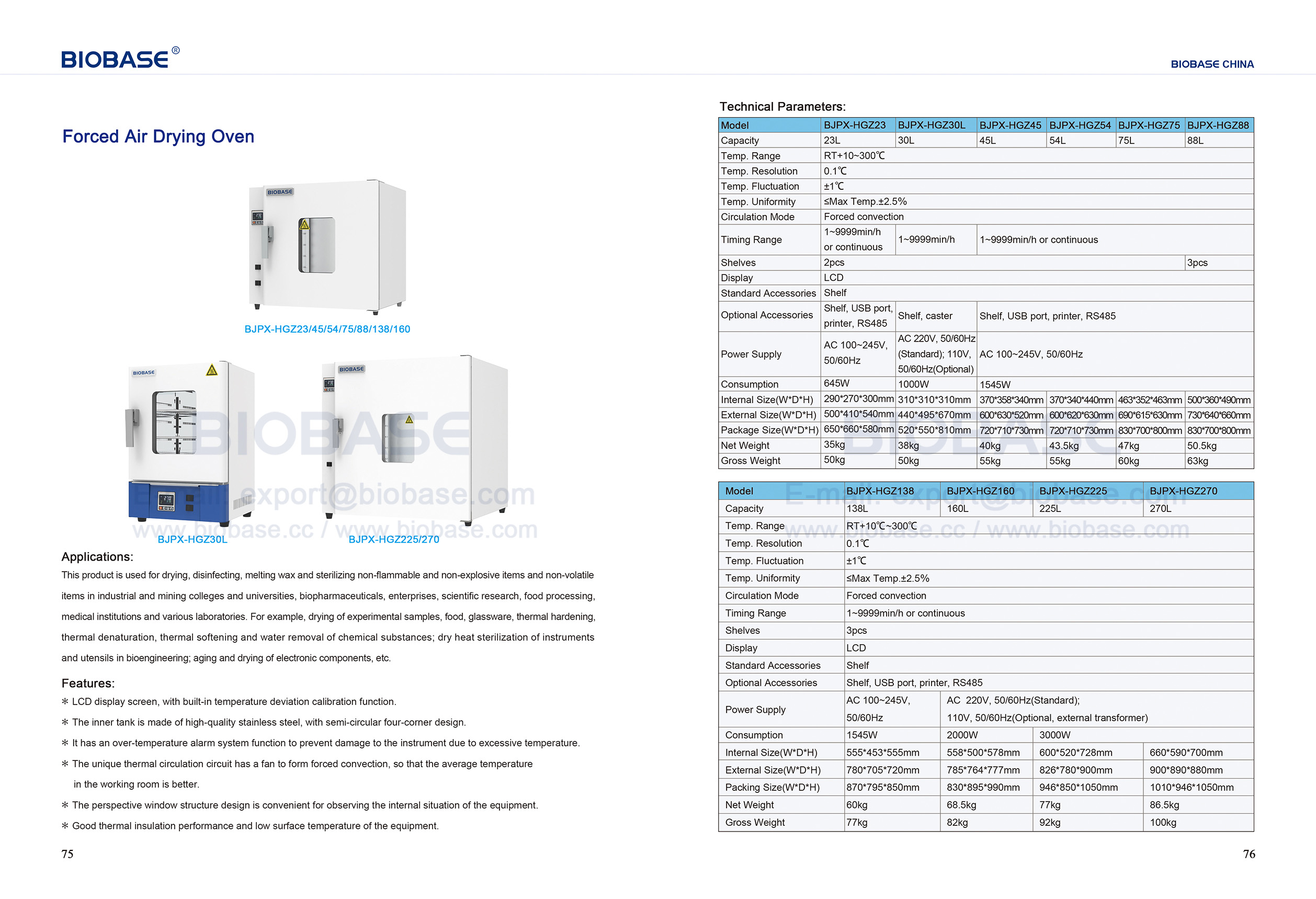

Technical Parameters：

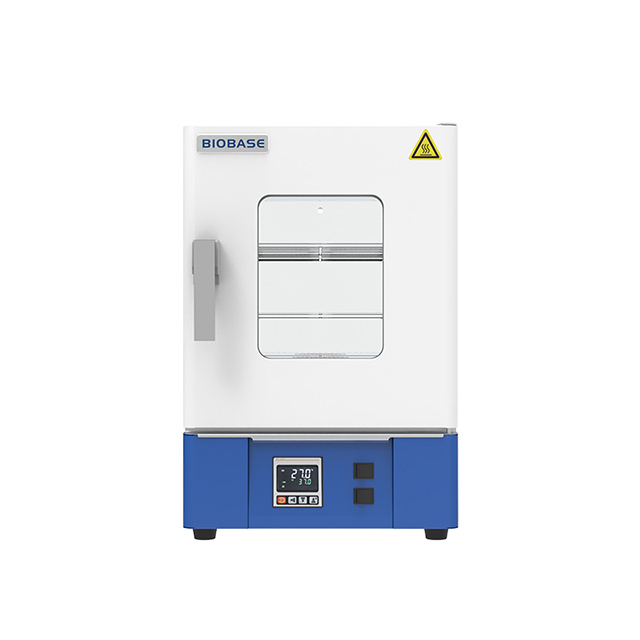

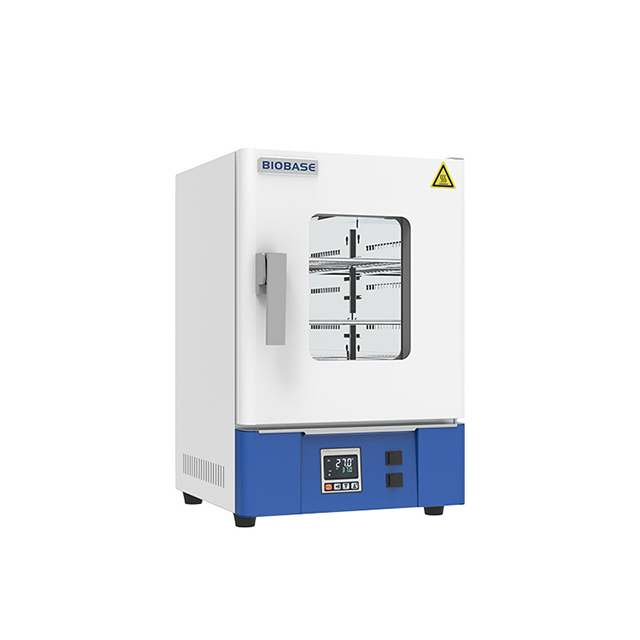

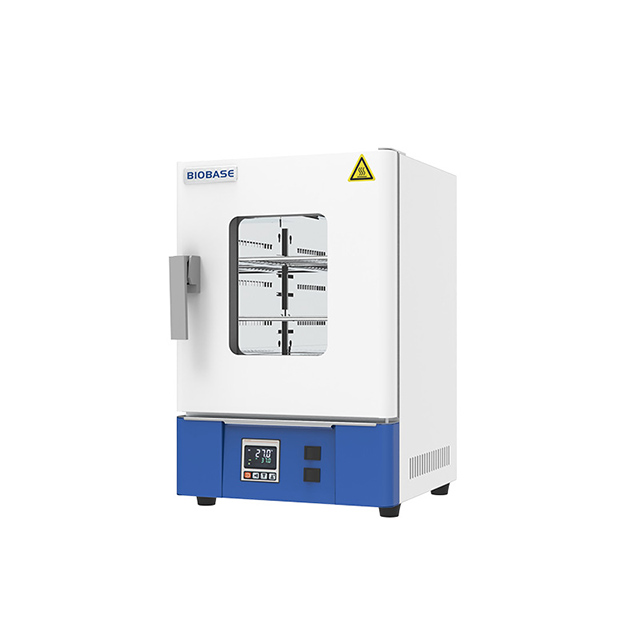

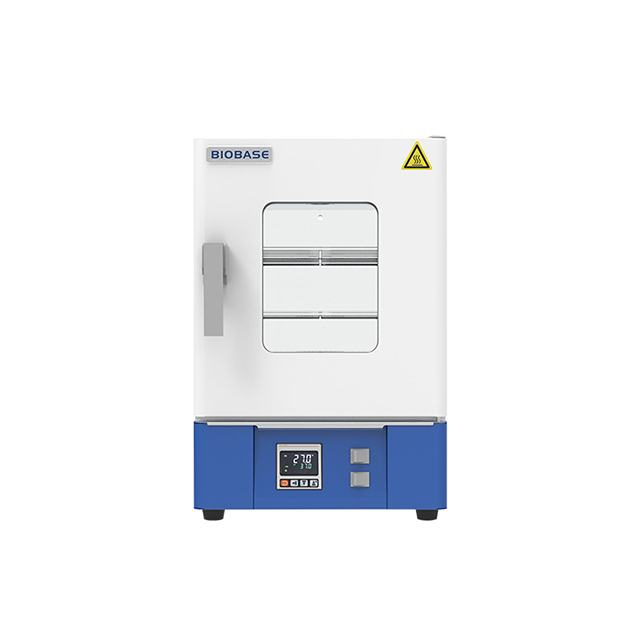

Model | BJPX-HGZ23 | BJPX-HGZ30L | BJPX-HGZ45 | BJPX-HGZ54 | BJPX-HGZ75 | BJPX-HGZ88 | |
Capacity | 23L | 30L | 45L | 54L | 75L | 88L | |
Temp. Range | RT+10~300℃ | ||||||
Temp. Resolution | 0.1℃ | ||||||
Temp. Fluctuation | ±1℃ | ||||||
Temp. Uniformity | ≤Max Temp.±2.5％ | ||||||
Circulation Mode | Forced convection | ||||||
Timing Range | 1~9999min/h or continuous | 1~9999min/h | 1~9999min/h or continuous | ||||
Shelf | 2pcs | 3pcs | |||||
Display | LCD | ||||||
Standard Accessories | Shelf | ||||||
Optional Accessories | Shelf, USB port, printer, RS485 | Shelf, caster | Shelf, USB port, printer, RS485 | ||||
Power Supply | AC 100~245V, 50/60Hz | AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | AC 100~245V, 50/60Hz | ||||
Consumption | 645W | 1000W | 1545W | ||||
Internal Size(W*D*H) | 290*270*300mm | 310*310*310mm | 370*358*340mm | 370*340*440mm | 463*352*463mm | 500*360*490mm | |
External Size(W*D*H) | 500*410*540mm | 440*495*670mm | 600*630*520mm | 600*620*630mm | 690*615*630mm | 730*640*660mm | |
Package Size(W*D*H) | 650*660*580mm | 520*550*810mm | 720*710*730mm | 720*710*730mm | 830*700*800mm | 830*700*800mm | |
Net Weight | 35kg | 38kg | 40kg | 43.5kg | 47kg | 50.5kg | |
Gross Weight | 50kg | 50kg | 55kg | 55kg | 60kg | 63kg | |

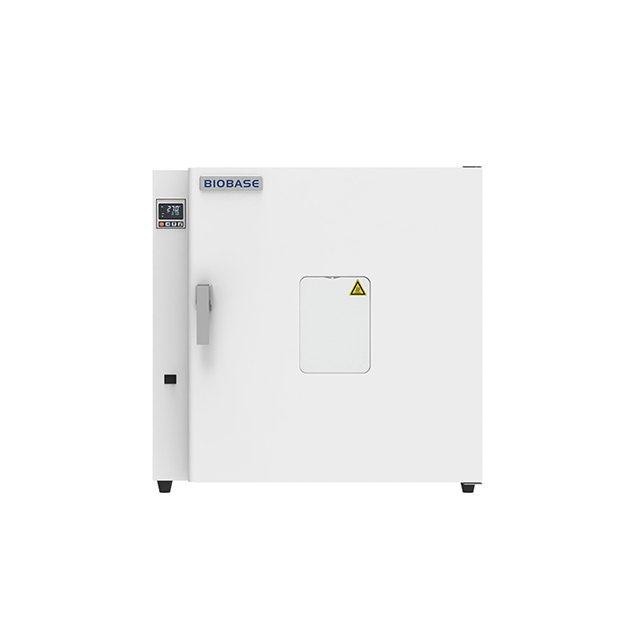

Model | BJPX-HGZ138 | BJPX-HGZ160 | BJPX-HGZ225 | BJPX-HGZ270 | |
Capacity | 138L | 160L | 225L | 270L | |
Temp. Range | RT+10℃~300℃ | ||||
Temp. Resolution | 0.1℃ | ||||
Temp. Fluctuation | ±1℃ | ||||
Temp. Uniformity | ≤Max Temp.±2.5％ | ||||
Circulation Mode | Forced convection | ||||
Timing Range | 1~9999min/h or continuous | ||||
Shelves | 3pcs | ||||
Display | LCD | ||||
Standard Accessories | Shelf | ||||
Optional Accessories | Shelf, USB port, printer, RS485 | ||||
Power Supply | AC 100~245V, 50/60Hz | AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) | |||
Consumption | 1545W | 2000W | 3000W | ||
Internal Size(W*D*H) | 555*453*555mm | 558*500*578mm | 600*520*728mm | 660*590*700mm | |
External Size(W*D*H) | 780*705*720mm | 785*764*777mm | 826*780*900mm | 900*890*880mm | |
Packing Size(W*D*H) | 870*795*850mm | 830*895*990mm | 946*850*1050mm | 1010*946*1050mm | |
Net Weight | 60kg | 68.5kg | 77kg | 86.5kg | |
Gross Weight | 77kg | 82kg | 92kg | 100kg | |
Features：
1. LCD display screen, with built-in temperature deviation calibration function.
2. The inner tank is made of high-quality stainless steel, with semi-circular four-corner design.
3. It has an over-temperature alarm system function to prevent damage to the instrument due to excessive temperature.
4. The unique thermal circulation circuit has a fan to form forced convection, so that the average temperature in the working room is better.
5. The perspective window structure design is convenient for observing the internal situation of the equipment.
6. Good thermal insulation performance and low surface temperature of the equipment.
Technical Parameters：
Model | BJPX-HGZ23 | BJPX-HGZ30L | BJPX-HGZ45 | BJPX-HGZ54 | BJPX-HGZ75 | BJPX-HGZ88 | |
Capacity | 23L | 30L | 45L | 54L | 75L | 88L | |
Temp. Range | RT+10~300℃ | ||||||
Temp. Resolution | 0.1℃ | ||||||
Temp. Fluctuation | ±1℃ | ||||||
Temp. Uniformity | ≤Max Temp.±2.5％ | ||||||
Circulation Mode | Forced convection | ||||||
Timing Range | 1~9999min/h or continuous | 1~9999min/h | 1~9999min/h or continuous | ||||
Shelf | 2pcs | 3pcs | |||||
Display | LCD | ||||||
Standard Accessories | Shelf | ||||||
Optional Accessories | Shelf, USB port, printer, RS485 | Shelf, caster | Shelf, USB port, printer, RS485 | ||||
Power Supply | AC 100~245V, 50/60Hz | AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional) | AC 100~245V, 50/60Hz | ||||
Consumption | 645W | 1000W | 1545W | ||||
Internal Size(W*D*H) | 290*270*300mm | 310*310*310mm | 370*358*340mm | 370*340*440mm | 463*352*463mm | 500*360*490mm | |
External Size(W*D*H) | 500*410*540mm | 440*495*670mm | 600*630*520mm | 600*620*630mm | 690*615*630mm | 730*640*660mm | |
Package Size(W*D*H) | 650*660*580mm | 520*550*810mm | 720*710*730mm | 720*710*730mm | 830*700*800mm | 830*700*800mm | |
Net Weight | 35kg | 38kg | 40kg | 43.5kg | 47kg | 50.5kg | |
Gross Weight | 50kg | 50kg | 55kg | 55kg | 60kg | 63kg | |
Model | BJPX-HGZ138 | BJPX-HGZ160 | BJPX-HGZ225 | BJPX-HGZ270 | |
Capacity | 138L | 160L | 225L | 270L | |
Temp. Range | RT+10℃~300℃ | ||||
Temp. Resolution | 0.1℃ | ||||
Temp. Fluctuation | ±1℃ | ||||
Temp. Uniformity | ≤Max Temp.±2.5％ | ||||
Circulation Mode | Forced convection | ||||
Timing Range | 1~9999min/h or continuous | ||||
Shelves | 3pcs | ||||
Display | LCD | ||||
Standard Accessories | Shelf | ||||
Optional Accessories | Shelf, USB port, printer, RS485 | ||||
Power Supply | AC 100~245V, 50/60Hz | AC 220V, 50/60Hz(Standard); 110V, 50/60Hz(Optional, external transformer) | |||
Consumption | 1545W | 2000W | 3000W | ||
Internal Size(W*D*H) | 555*453*555mm | 558*500*578mm | 600*520*728mm | 660*590*700mm | |
External Size(W*D*H) | 780*705*720mm | 785*764*777mm | 826*780*900mm | 900*890*880mm | |
Packing Size(W*D*H) | 870*795*850mm | 830*895*990mm | 946*850*1050mm | 1010*946*1050mm | |
Net Weight | 60kg | 68.5kg | 77kg | 86.5kg | |
Gross Weight | 77kg | 82kg | 92kg | 100kg | |
