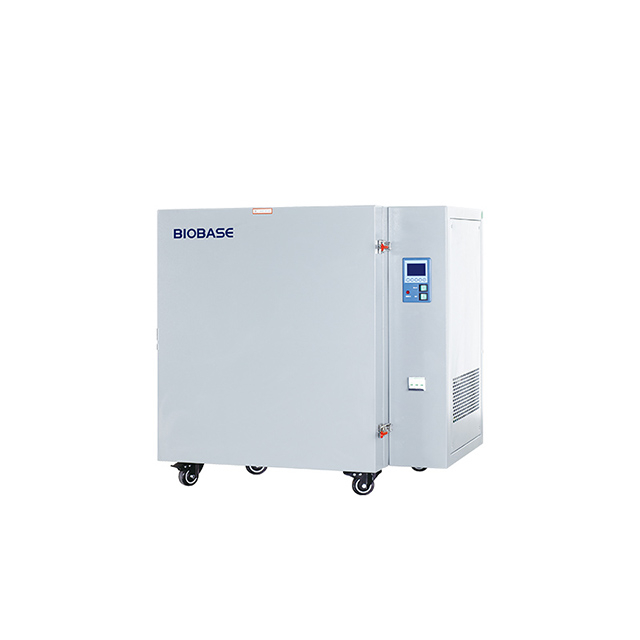

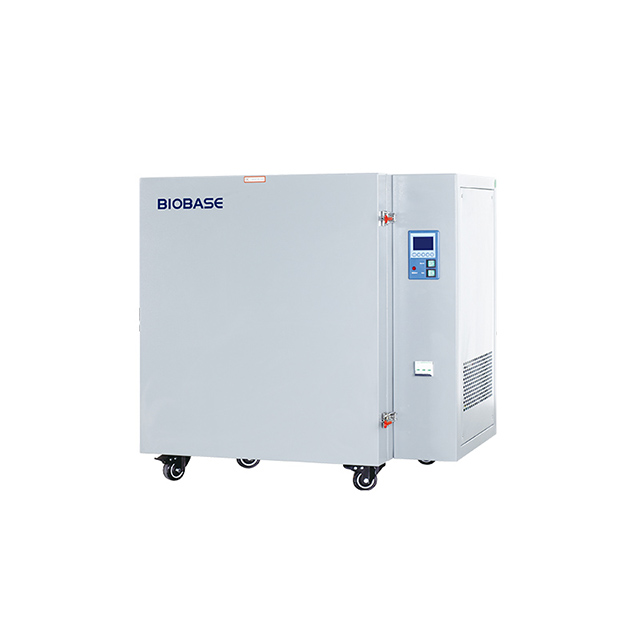

BOV-H50, BOV-H100, BOV-H226
BIOBASE
Features:
* Outer material: cold-rolled steel plate sprayed on the surface; inner material: SUS stainless steel plate.
* PID microprocessor temperature control, precise and reliable temperature control.
* The inner box is designed with a circular arc structure, which is easy to clean.
* Optional printer or RS485 interface for software connection (For BOV-H50/100)
Models:
Model | BOV-H50 | BOV-H100 | BOV-H226 |
Capacity | 50L | 100L | 226L |
Display | LED | LCD | |
Temp. Range | RT+20〜400°C | 50~500°C | |
Temp. Precision | 0.1°C | ||
Temp. Fluctuation | ±0.5°C | ±1°C | |
Ambient Temp. | 5~40°C | ||
Timing Range | 0~5999min | 0~9999min | |
Shelves No. | 2 pcs | 3 pcs | |
Consumption | 3250W | 4050W | 8000W |
Power Supply | 380V,50HZ | 380V,50HZ | |
Internal Size(W*D*H)mm | 350*350*400 | 450*450*450 | 602*500*753 |
External Size(W*D*H)mm | 890*700*920 | 990*790*990 | 1070*770*1122 |
Packing Size (W*D*H)mm | 1010*820*1150 | 1100*920*1210 | 1220*890*1280 |
Gross Weight.(kg) | 198 | 247 | 250 |
Features:
* Outer material: cold-rolled steel plate sprayed on the surface; inner material: SUS stainless steel plate.
* PID microprocessor temperature control, precise and reliable temperature control.
* The inner box is designed with a circular arc structure, which is easy to clean.
* Optional printer or RS485 interface for software connection (For BOV-H50/100)
Models:
Model | BOV-H50 | BOV-H100 | BOV-H226 |
Capacity | 50L | 100L | 226L |
Display | LED | LCD | |
Temp. Range | RT+20〜400°C | 50~500°C | |
Temp. Precision | 0.1°C | ||
Temp. Fluctuation | ±0.5°C | ±1°C | |
Ambient Temp. | 5~40°C | ||
Timing Range | 0~5999min | 0~9999min | |
Shelves No. | 2 pcs | 3 pcs | |
Consumption | 3250W | 4050W | 8000W |
Power Supply | 380V,50HZ | 380V,50HZ | |
Internal Size(W*D*H)mm | 350*350*400 | 450*450*450 | 602*500*753 |
External Size(W*D*H)mm | 890*700*920 | 990*790*990 | 1070*770*1122 |
Packing Size (W*D*H)mm | 1010*820*1150 | 1100*920*1210 | 1220*890*1280 |
Gross Weight.(kg) | 198 | 247 | 250 |
