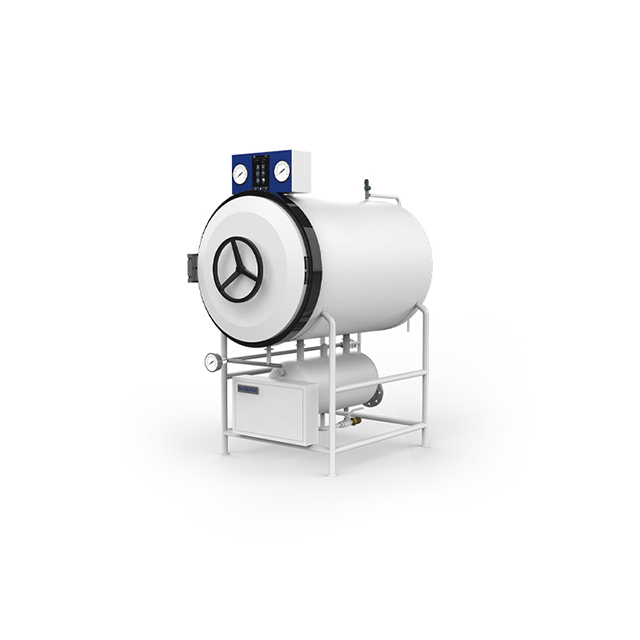

Horizontal Cylindrical Pressure Autoclave

A sterilization equipment for labs and healthcare, featuring a cylindrical design, operates under high pressure to ensure effective decontamination of instruments and materials.
Availability:
Quantity:
  • BKQ-H150 BKQ-H200 BKQ-H300 BKQ-H400

  • BIOBASE

Features:

1. Brand New Operation Interface

The LCD touch screen can display temperature,time,operating status,and fault alarm in real time,making the

sterilization information more intuitive and clear,and it is convenient for users to observe the operating status of the

equipment.

2. Drying Function

With auxiliary drying function,it is used to dry sterilized items.

3. Protection Device

Equipped with over-temperature and over-pressure automatic protection devices.

4. Steam Generator

The equipment has a built-in high-speed steam generator,which saves time and effort without external steam source.

5. Automatic Operation of The Program

The equipment is externally connected to the water source,and there is no need for manual water replenishment.After the customer selects the program,the equipment can complete the entire process from water injection to drying without human intervention.After the program is completed,the sound prompts that the sterilization is complete.

Programs:Wrapped,Unwrapped,Dressing,Rubber,Drying,DIY solid

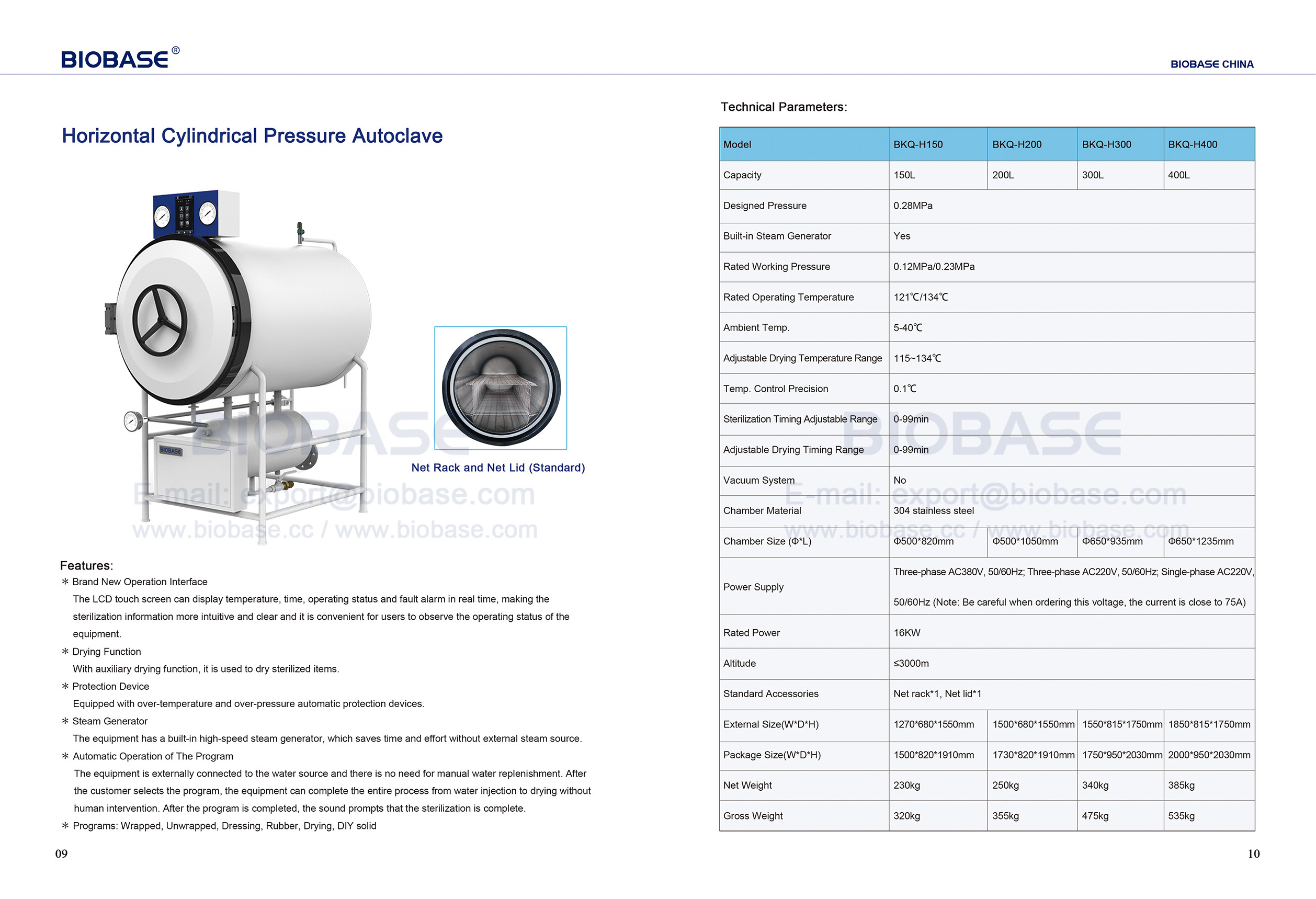

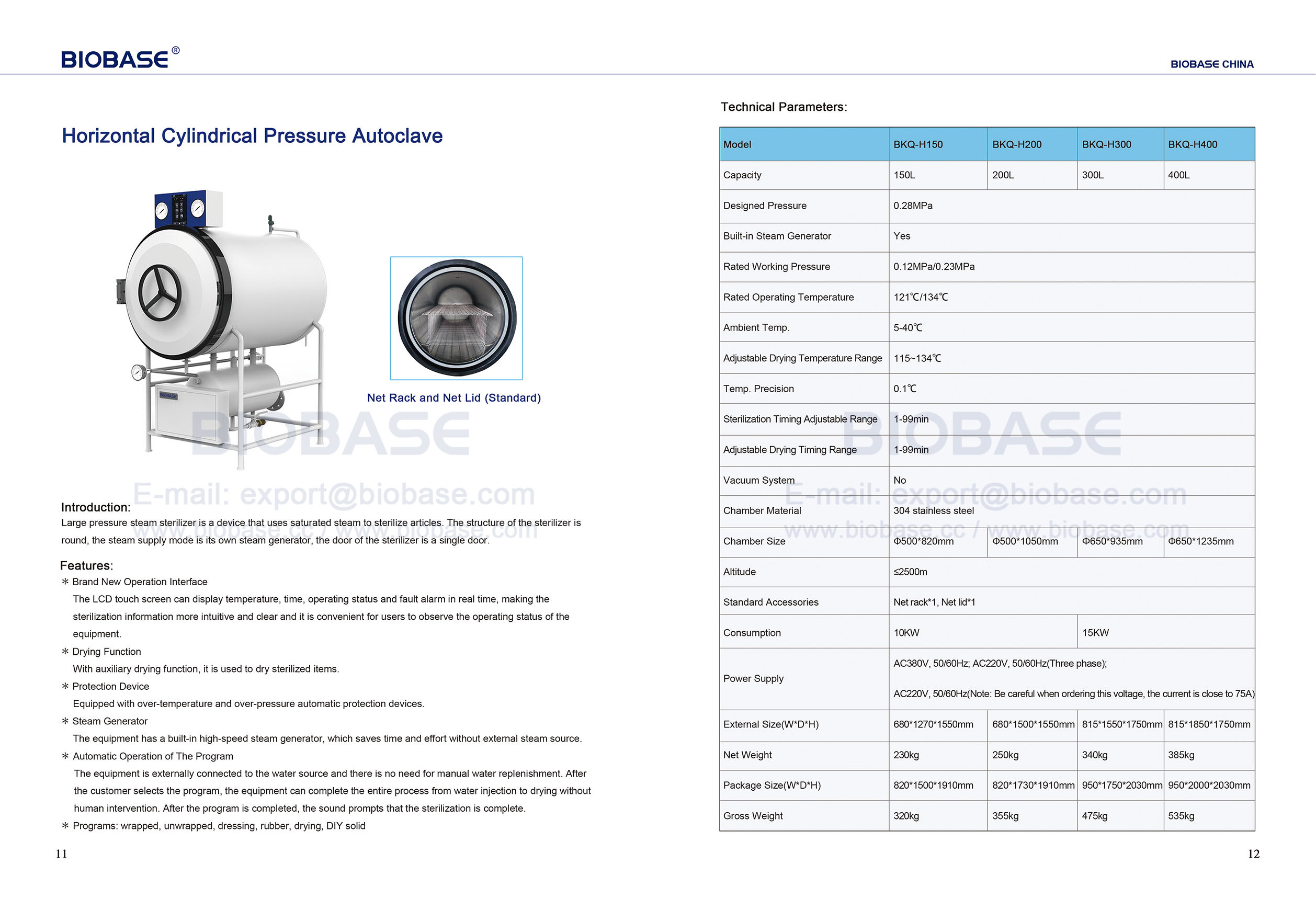

Technical Parameters:

Model

BKQ-H150

BKQ-H200

BKQ-H300

BKQ-H400

Volume

150L

200L

300L

400L

Design Pressure

0.28MPa

Rated Operating Temperature

121℃/134℃

Rated working pressure

0.12MPa/0.23MPa

Chamber Material

S30408

Power Supply

Standard:380V 50/60Hz three phase;

optional:220V 50/60Hz three phase,220V 50/60Hz one phase

Rated Power

16kW

Ambient Temperature

5-40℃

Sterilization Time Adjustable Range

0-99min

Adjustable Drying Time Range

0-99min

Adjustable Drying Temperature Range

115℃-134℃

Chamber Size (φ*L)mm

φ500*820

φ500*1050

φ650*935

φ650*1235

Packing Size(L*D*H)mm

1370*820*1880

1600*820*1880

1650*950*1980

1950*950*1980

Gross Weight (kg)

320

355

475

535
