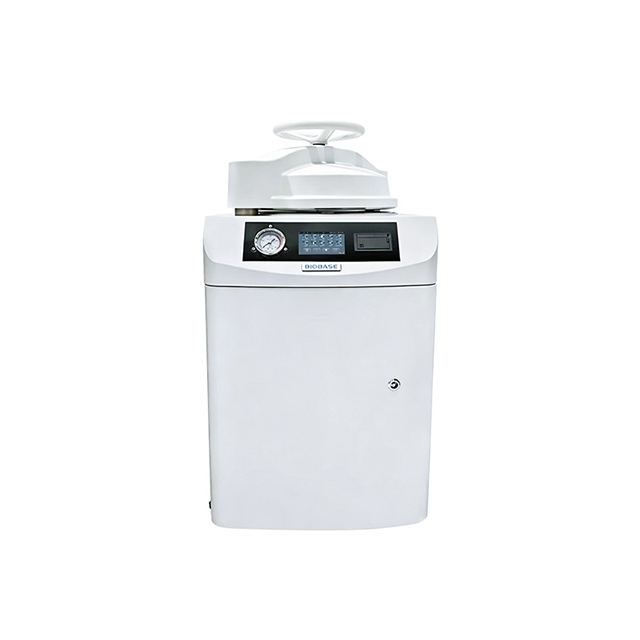

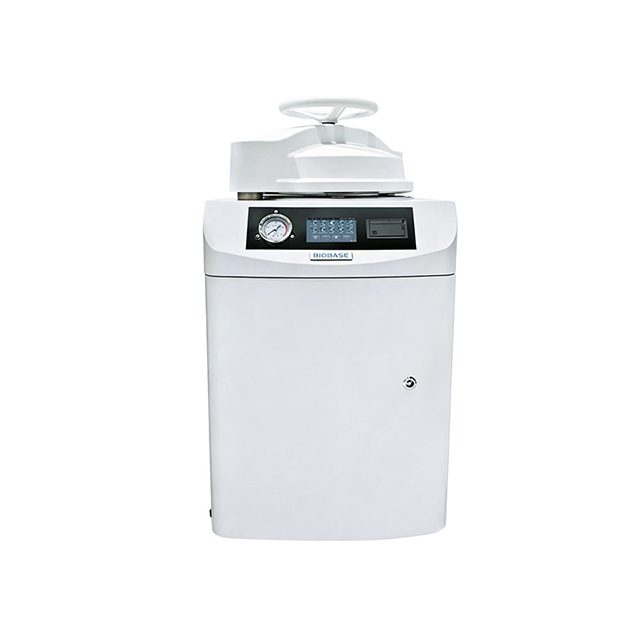

Vertical Autoclave

Introduction:
The Vertical Autoclave is a high-pressure steam sterilizer designed for laboratories and medical facilities. It features diverse built-in programs for liquids, media, rubber, and custom sterilization, with a delayed start function for automated operation. Dual temperature sensors and comprehensive safety protections — including double over-pressure, over-temperature, and dry-burning prevention — ensure safe, reliable sterilization performance.

Availability:

Quantity:



Inquire Add to Basket

Model:
BKQ-L60 BKQ-L80 BKQ-L100 BKQ-L120
Brand:
BIOBASE

BKQ-L60

Features：

1. Diverse programs: exposed program, packaged program, rubber program, dressing program, liquid programs, medium sterilization programs, medium dissolution programs, solid customization and liquid customization.

2. Delayed start function, can operate automatically according to the set time.

3. With fixed temperature sensors and mobile temperature sensors for dual temperature control.

4. Safety device: dual safety interlock device for electronics and mechanics, dual protection device against dry burning, dual over-pressure protection device for electronics and mechanics, over-temperature protection device, over-current protection device and door detection device.

Technical Parameters:

Model	BKQ-L60	BKQ-L80	BKQ-L100	BKQ-L120
Capacity	60L	80L	100L	120L
Designed Pressure	0.32Mpa
Working Pressure	0.23Mpa
Designed Temp.	150℃
Working Temp.	40~138℃
Temp. Precision	±0.1℃
Chamber Material	304 stainless steel
Chamber Size	Φ386*517mm	Φ386*697mm	Φ386*877mm	Φ386*1057mm
Basket	Φ365*360mm, 1pc	Φ365*265mm, 2pcs	Φ365*360mm, 2pcs	Φ365265mm, 1pc； Φ365265mm, 2pcs
Noise	≤65dB
Altitude	≤3000m

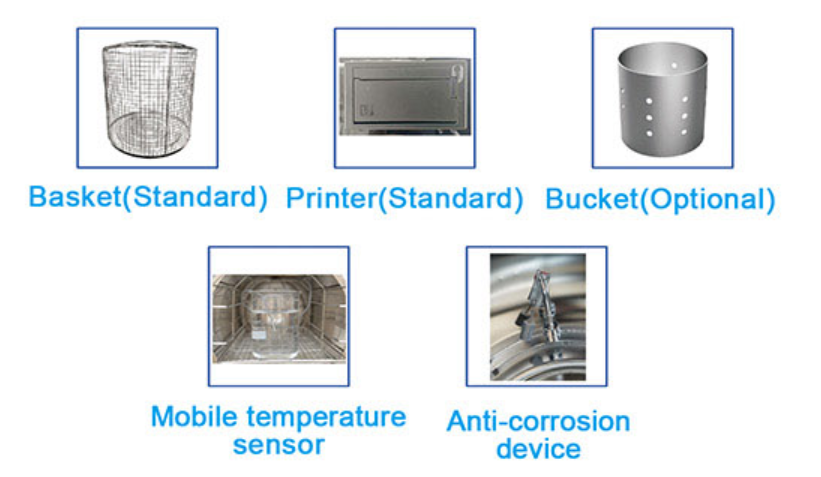

Standard Accessories	Basket, printer, USB, mobile temperature sensor
Optional Accessory	Bucket
Consumption	4.4KW	4.7KW	5.2KW
Power Supply	AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) Wiring method: air switch
External Size(WDH)	505750870mm	5057501050mm	5057501230mm	5057501430mm
Net Weight	87kg	93kg	103kg	110kg
Package Size(WDH)	6208501070mm	6208501250mm	6208501430mm	6208501610mm
Gross Weight	103kg	111kg	121kg	131kg
