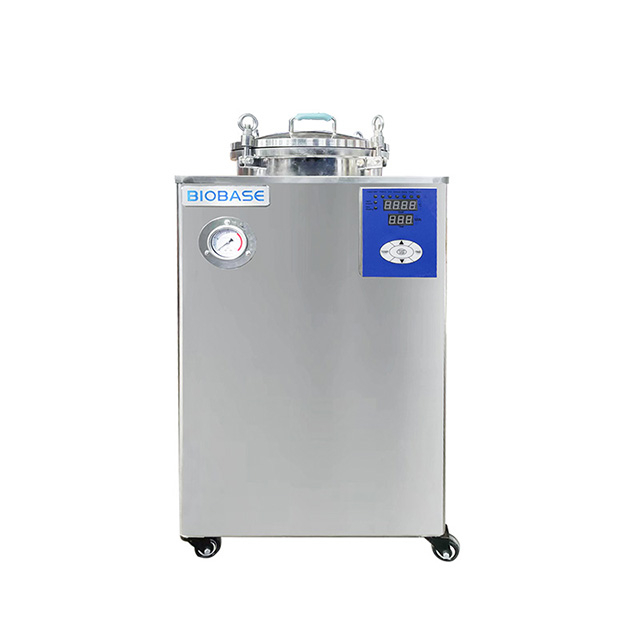

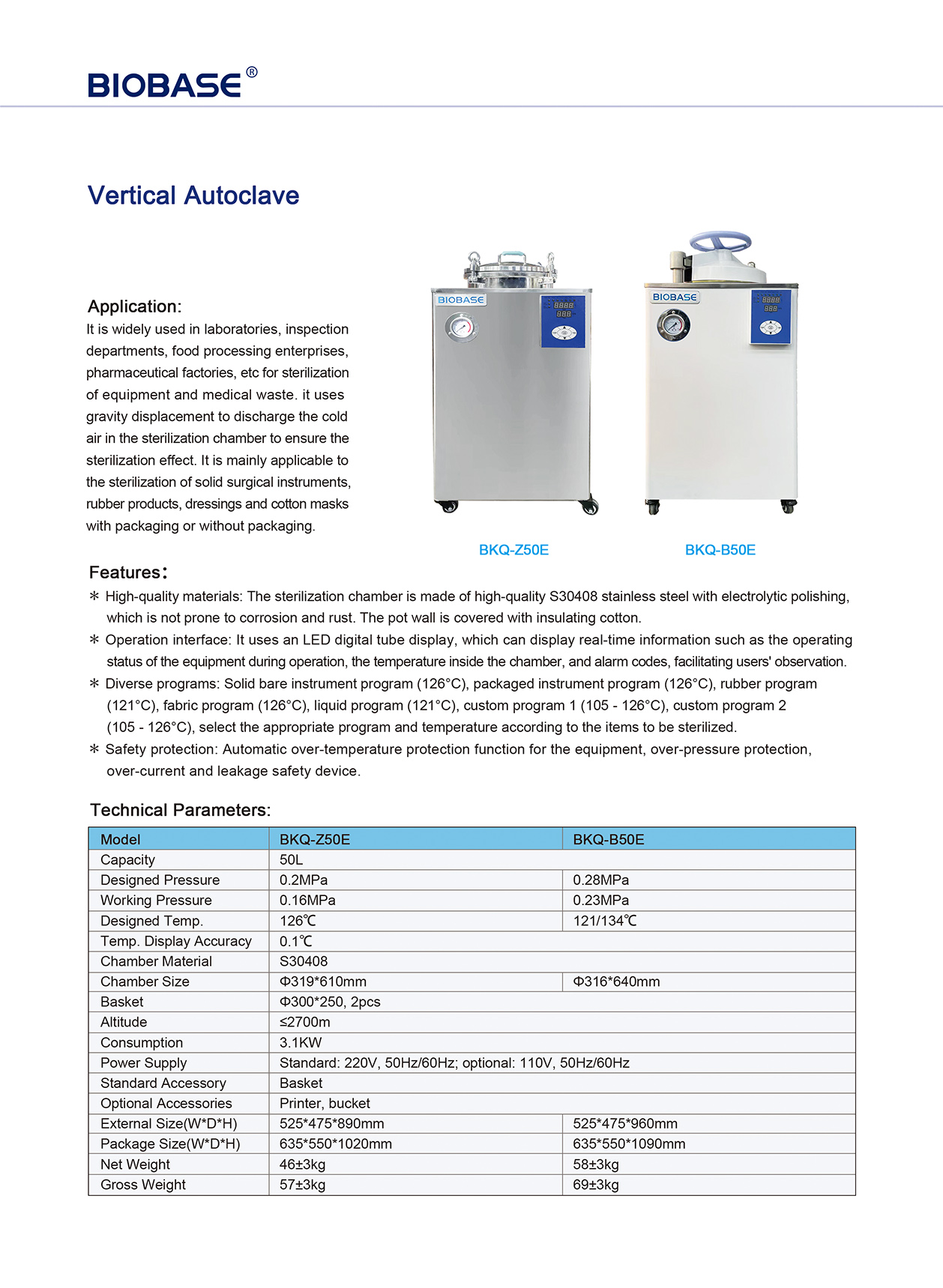

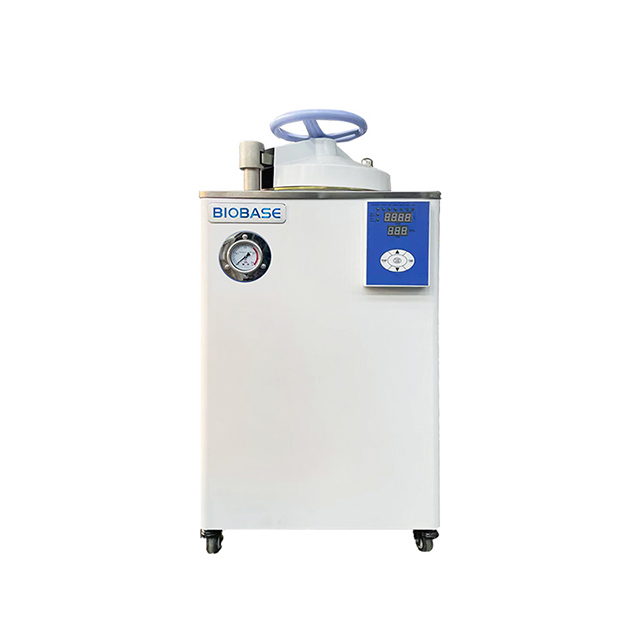

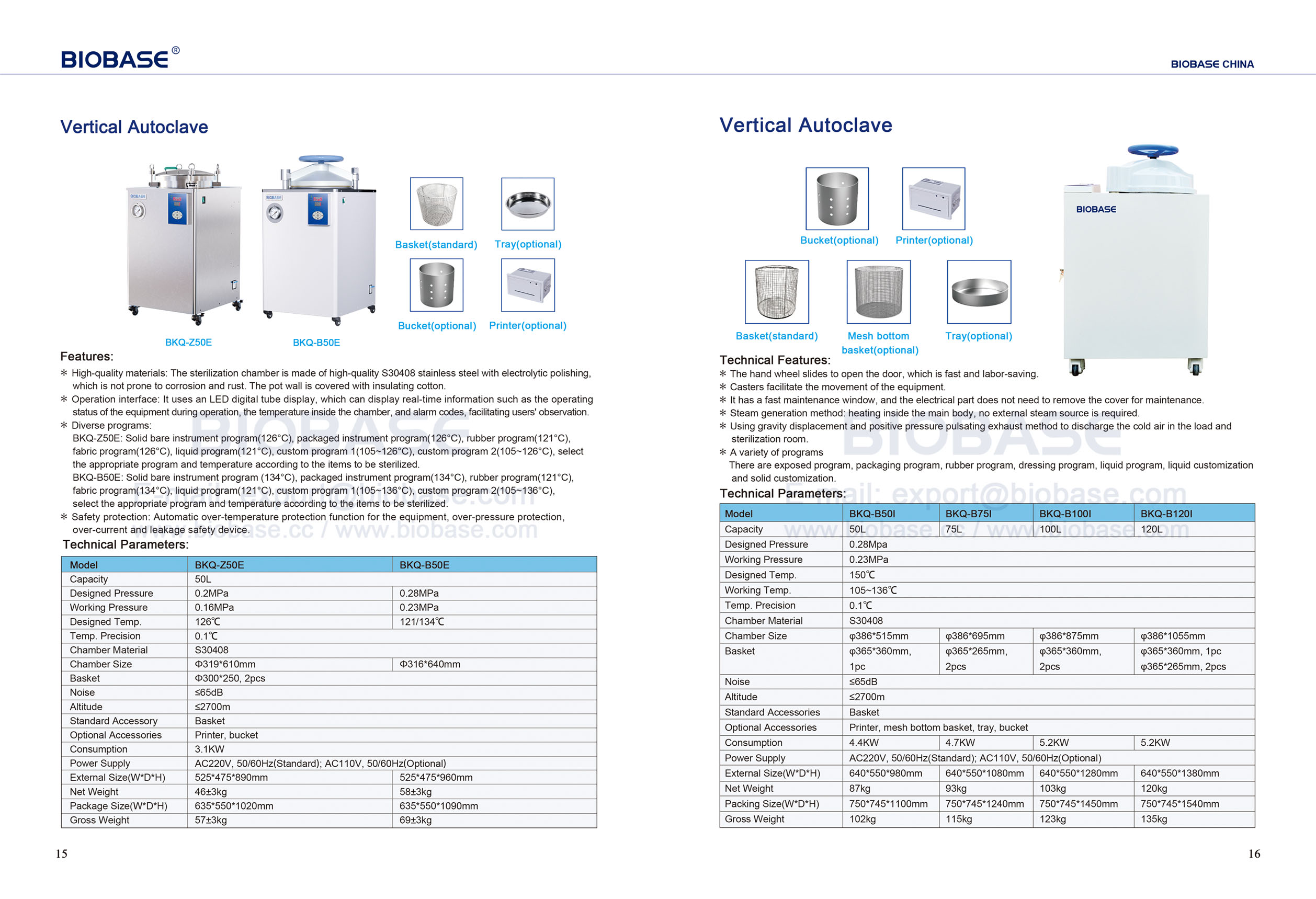

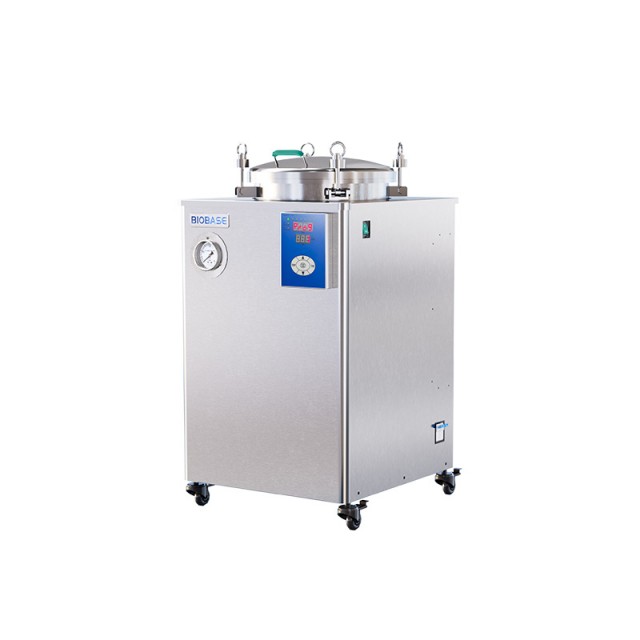

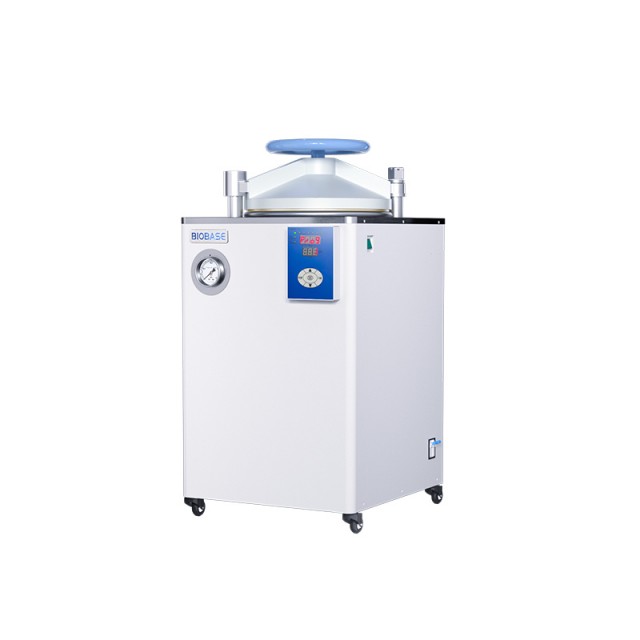

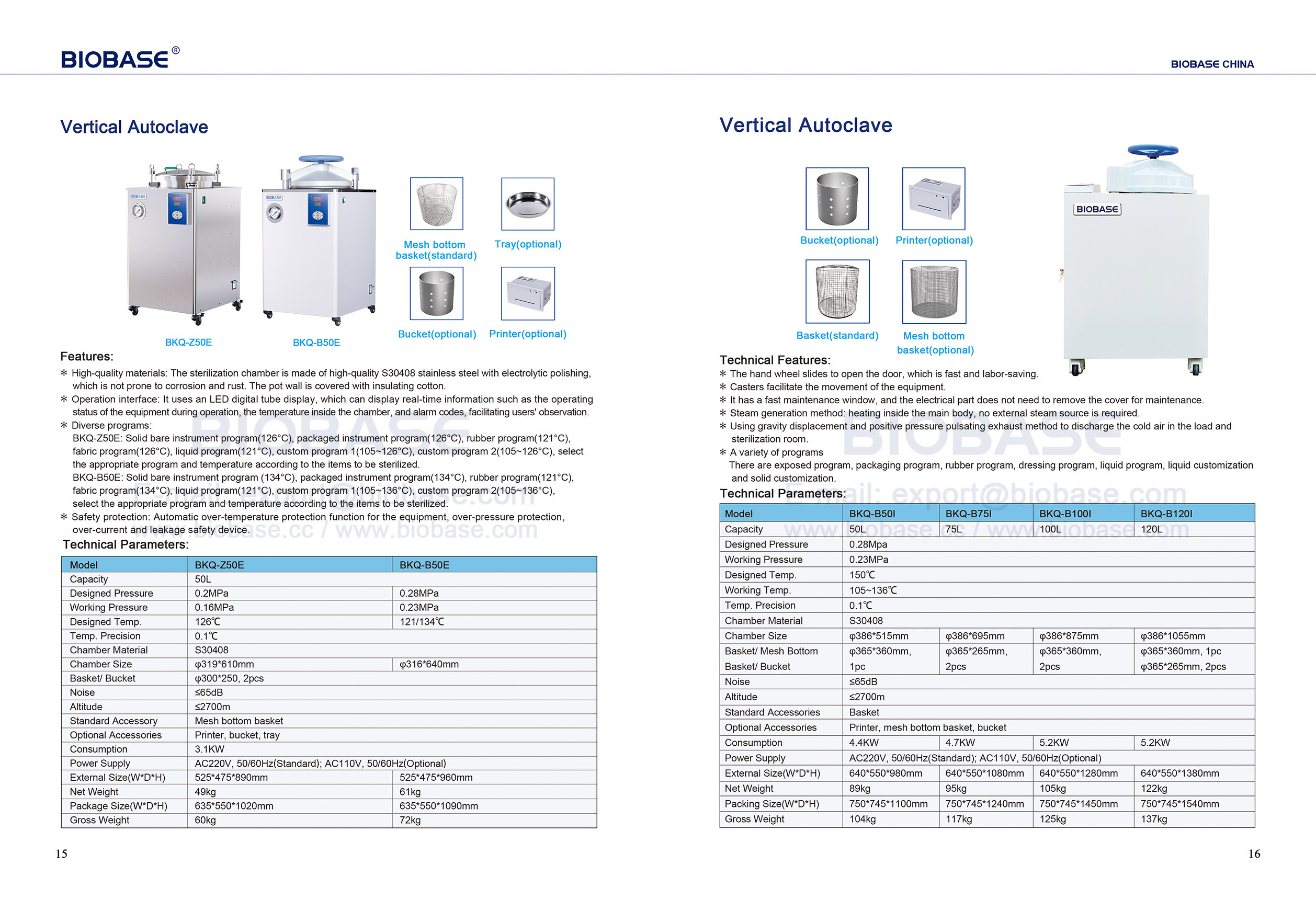

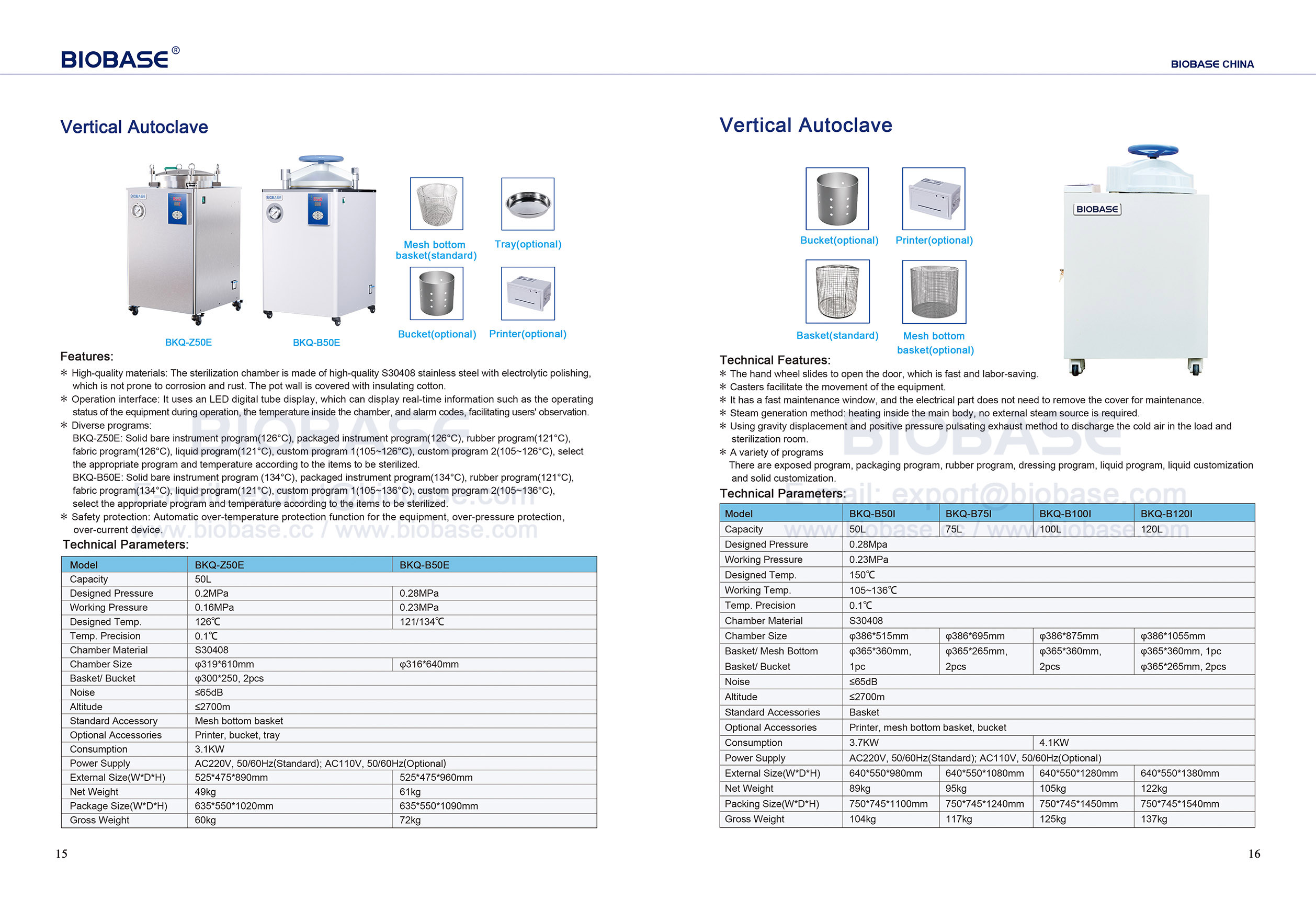

Vertical Autoclave 50L

Application:
It is widely used in laboratories, inspection departments, food processing enterprises, pharmaceutical factories, etc for sterilization of equipment and medical waste. it uses gravity displacement to discharge the cold air in the sterilization chamber to ensure the sterilization effect. It is mainly applicable to the sterilization of solid surgical instruments, rubber products, dressings and cotton masks with packaging or without packaging.
Availability:
Quantity:
  • BKQ-Z50E BKQ-B50E

  • BIOBASE

Features:

1. High-quality materials: The sterilization chamber is made of high-quality S30408 stainless steel with electrolytic polishing, which is not prone to corrosion and rust. The pot wall is covered with insulating cotton.

2. Operation interface: It uses an LED digital tube display, which can display real-time information such as the operating status of the equipment during operation, the temperature inside the chamber, and alarm codes, facilitating users' observation.

3. Diverse programs: Solid bare instrument program(126°C), packaged instrument program(126°C), rubber program(121°C), fabric program(126°C), liquid program(121°C), custom program 1(105~126°C), custom program 2(105~126°C), select the appropriate program and temperature according to the items to be sterilized.

4. Safety protection: Automatic over-temperature protection function for the equipment, over-pressure protection, over-current and leakage safety device.


Technical Parameters:

Model

BKQ-Z50E

BKQ-B50E

Capacity

50L

Designed Pressure

0.2MPa

0.28MPa

Working Pressure

0.16MPa

0.23MPa

Designed Temp.

126℃

121/134℃

Temp. Display Accuracy

0.1℃

Chamber Material

S30408

Chamber Size

Φ319*610mm

Φ316*640mm

Basket

Φ300*250, 2pcs

Altitude

≤2700m

Consumption

3.1KW

Power Supply

Standard: 220V, 50/60Hz; Optional: 110V, 50/60Hz

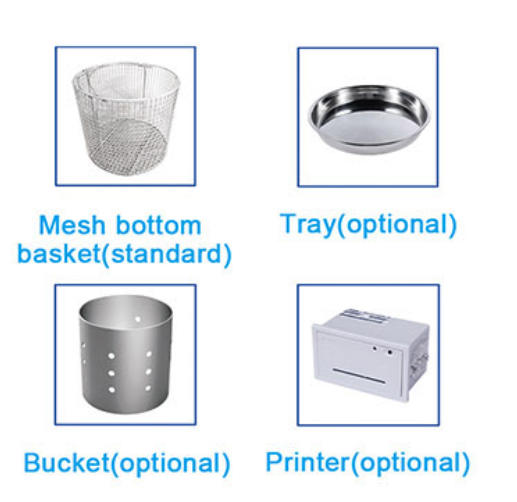

Standard Accessory

Basket

Optional Accessories

Printer, bucket

External Size(W*D*H)

525*475*890mm

525*475*960mm

Package Size(W*D*H)

635*550*1020mm

635*550*1090mm

Net Weight

46±3kg

58±3kg

Gross Weight

57±3kg

69±3kg
