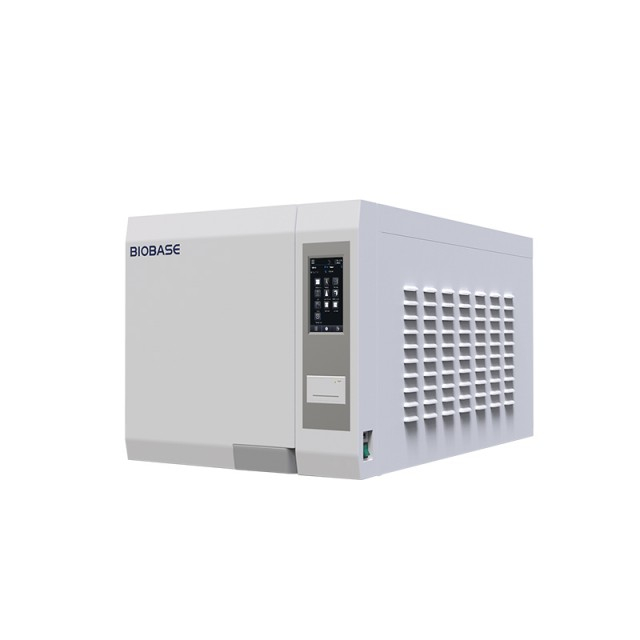

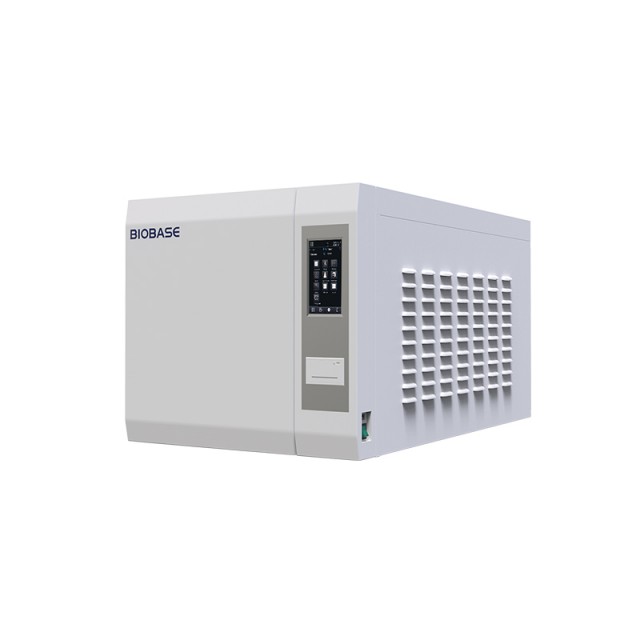

BKM-K18B, BKM-Z18B, BKM-K23B, BKM-Z23B
BIOBASE
Application:
Widely used in damp heat sterilization of medical equipment, sanitary materials, etc.
Features:

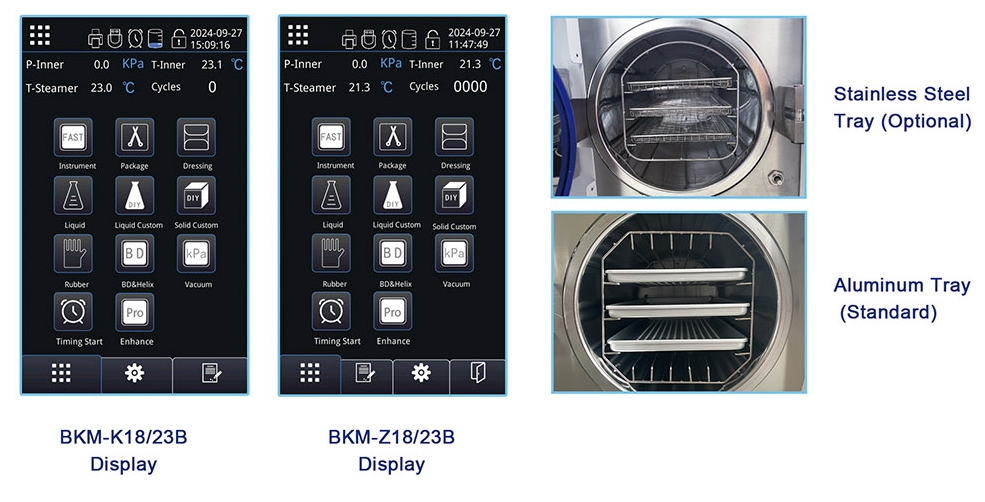

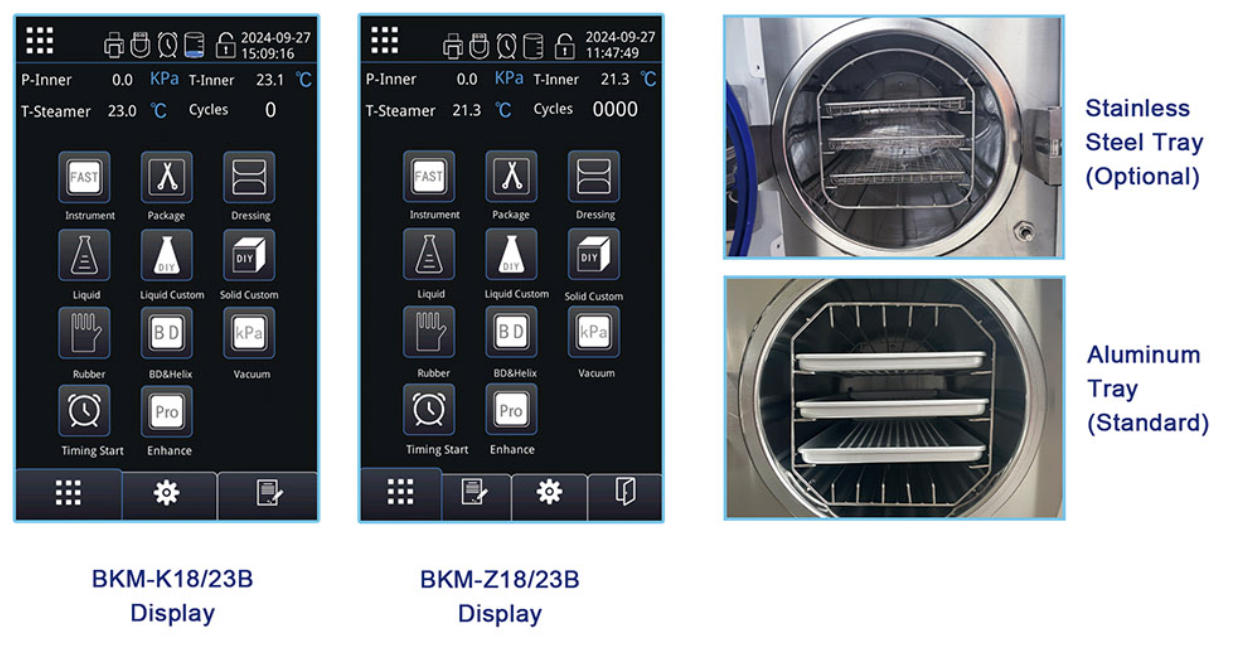

1. Brand-new operation interface: The LCD touch screen can display real-time information such as temperature, pressure, time, operating status, fault alarm, and equipment operating curve, making the sterilization information more intuitive and clear, and it is convenient for users to observe the operating status of the equipment.
2. Multiple safety protection devices: Automatic over-temperature protection device, multiple control and protection of evaporator, door safety interlock protection, double over-pressure protection device, etc.
3. Door structure: BKM-K18/23B autoclave adopts a manual door structure, BKM-Z18/23B autoclave adopts automatic door structure. It is could quick and convenient to operate, and effectively protects the human body and prevents burns.
4. Vacuum system: It adopts high-efficiency vacuum system, low working noise, ultimate vacuum can reach more than -80KPa, fast pumping speed, good dryness of items, and more thorough sterilization.
5. Diversified procedures: There are fast procedures, encapsulation procedures, rubber procedures, dressing procedures, liquid procedures, liquid customization, solid customization and other procedures, as well as B&D testing, vacuum testing procedures, and appointment procedures.
6. High-efficiency air filter: 0.22μm sterilizing high-efficiency air filter, the filtration efficiency is not less than 99.5%, to ensure that the vacuum-breaking air is sterile air, and to avoid re-contamination of sterile materials.
7. Recording device: The equipment is equipped with a thermal printer and USB interface as standard, which can record the data of the entire sterilization process in real time.
8. Other functions: Automatic operation of the whole process of preheating, replacement, heating, sterilization, exhaust steam, and vacuum drying.
Technical Parameters:
Model | BKM-K18B | BKM-Z18B | BKM-K23B | BKM-Z23B |
Capacity | 18L | 23L | ||
Door | Manual | Automatic | Manual | Automatic |
Designed Pressure | -0.1/0.3MPa | |||
Water Tank Volume | 3.5L | |||
Working Temp. | 105~134℃ | |||
Vacuum System | High efficiency vacuum pump | |||
Chamber Material | S30408 | |||
Atmospheric Pressure | 76~106kpa | |||
Ambient Temp. | 5~40°C | |||
Standard Accessories | USB/Printer | |||
Power Supply | 220V, 50/60HZ (Standard); 110V, 60Hz (Optional); Wiring Method: Air switch | |||
Consumption | 3kVA | |||
External Size(W*D*H)mm | 630*485*450 | 680*485*450 | ||
Chamber Size(mm) | φ250*350 | φ250*450 | ||
Package Size(W*D*H)mm | 810*610*590 | |||
Gross Weight(kg) | 64 | 65 |
