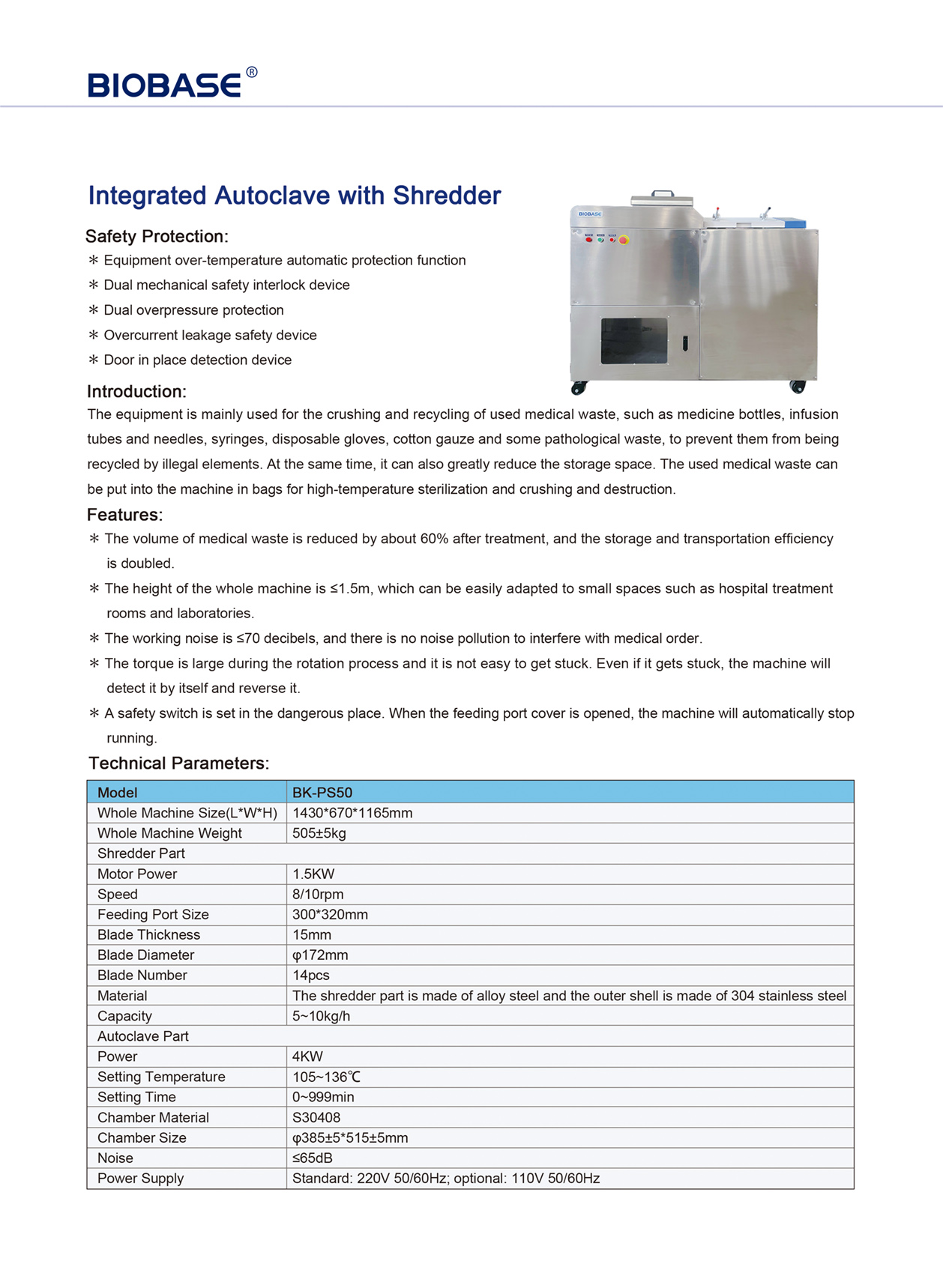

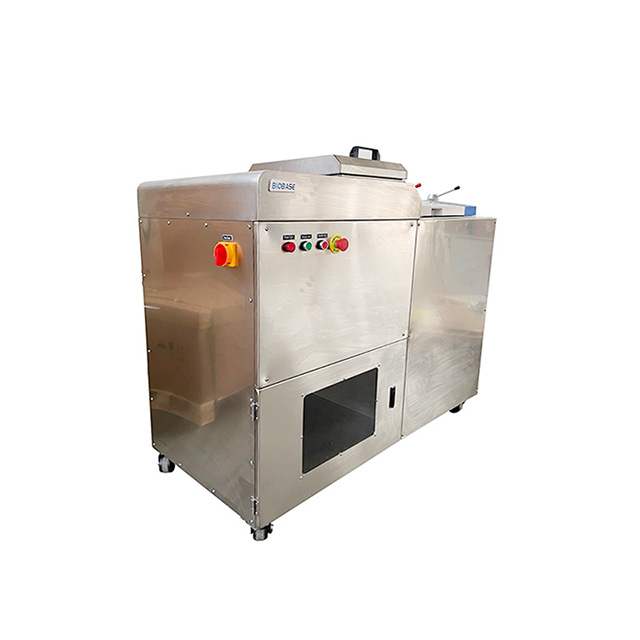

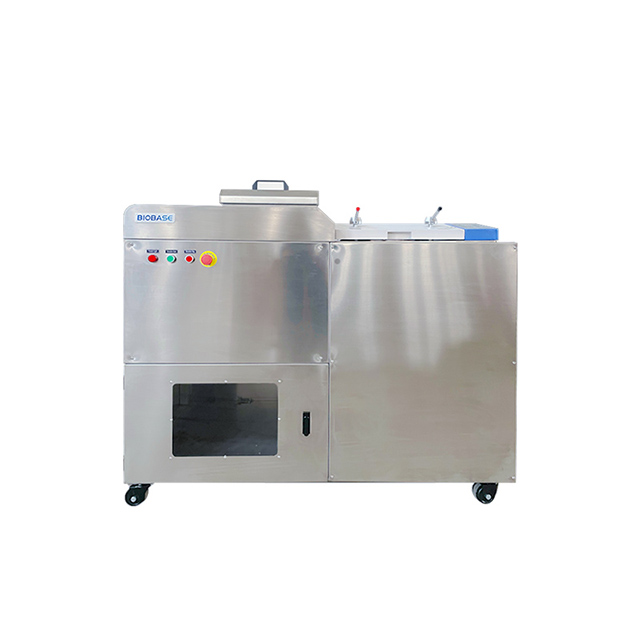

Integrated Autoclave with Shredder

Introduction:
The equipment is mainly used for the crushing and recycling of used medical waste, such as infusion tubes and needles, syringes, disposable gloves, cotton gauze and some pathological waste, to prevent them from being recycled by illegal elements. At the same time, it can also greatly reduce the storage space. The used medical waste can be put into the machine in bags for high-temperature sterilization and crushing and destruction.
Availability:
Quantity:
  • BK-PS50

  • BIOBASE

Features:

1. The volume of medical waste is reduced by about 60% after treatment, and the storage and transportation efficiency is doubled.

2. The height of the whole machine is ≤1.5m, which can be easily adapted to small spaces such as hospital treatment rooms and laboratories.

3. The working noise is ≤70 decibels, and there is no noise pollution to interfere with medical order.

4. The torque is large during the rotation process and it is not easy to get stuck. Even if it gets stuck, the machine will detect it by itself and reverse it.

5. A safety switch is set in the dangerous place. When the feeding port cover is opened, the machine will automatically stop running.


Safety Protection:

1. Equipment over-temperature automatic protection function.

2. Dual mechanical safety interlock device.

3. Dual overpressure protection.

4. Overcurrent leakage safety device.

5. Door in place detection device.


Technical Parameters:

Model

BK-PS50

Whole Machine Size(L*W*H)

1430*670*1165mm

Whole Machine Weight

505±5kg

Shredder Part

Motor Power

1.5KW

Speed

8/10rpm

Feeding Port Size

300*320mm

Blade Thickness

15mm

Blade Diameter

φ172mm

Blade Number

14pcs

Material

The shredder part is made of alloy steel and the outer shell is made of 304 stainless steel

Capacity

5~10kg/h

Autoclave Part

Power

4KW

Setting Temperature

105~136℃

Setting Time

0~999min

Chamber Material

S30408

Chamber Size

φ385±5*515±5mm

Noise

≤65dB

Power Supply

Standard: 220V, 50/60Hz

Optional: 110V, 50/60Hz
