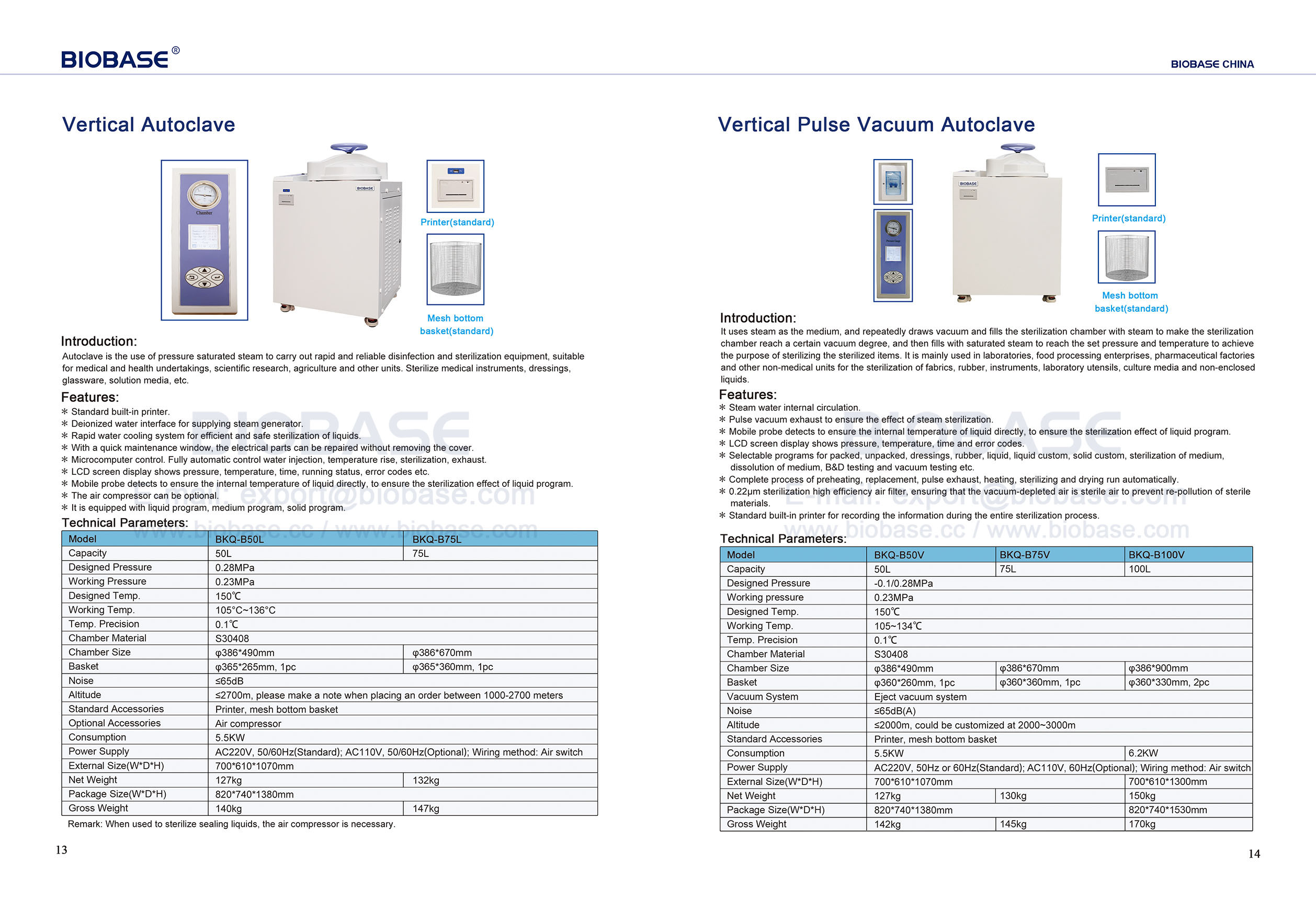

Introduction:
Autoclave is the use of pressure saturated steam to carry out rapid and reliable disinfection and sterilization equipment, suitable for medical and health undertakings, scientific research, agriculture and other units. Sterilize medical instruments, dressings, glassware, solution media, etc.
| Quantity: | |
|---|---|

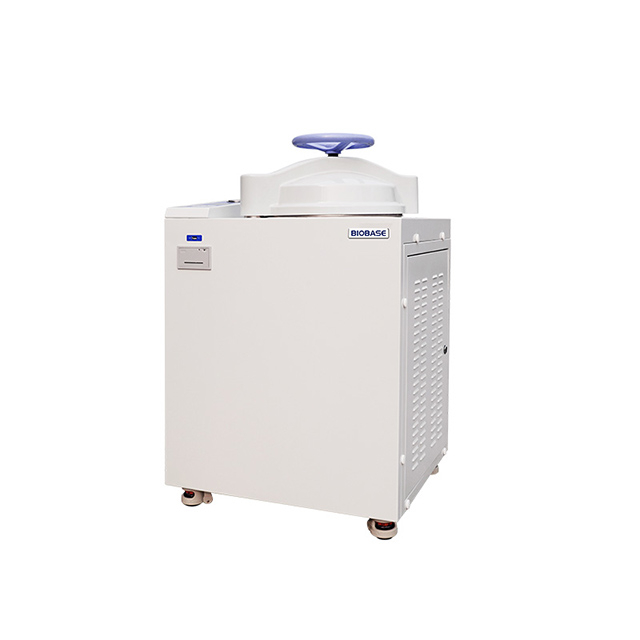

BKQ-B50L, BKQ-B75L
BIOBASE
Features:

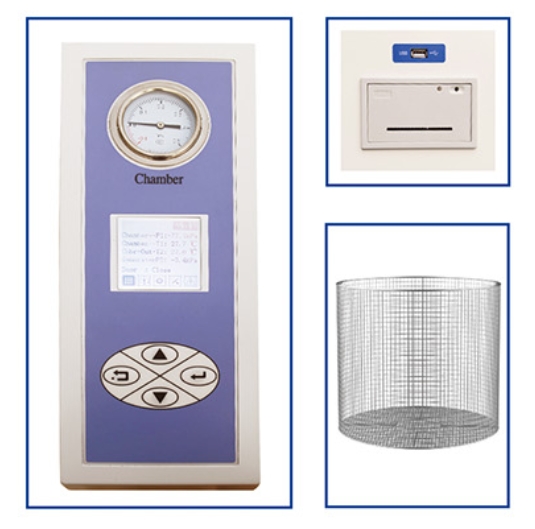

1. Standard built-in printer.
2. Deionized water interface for supplying steam generator.
3. Rapid water cooling system for efficient and safe sterilization of liquids.
4. With a quick maintenance window, the electrical parts can be repaired without removing the cover.
5. Microcomputer control. Fully automatic control water injection, temperature rise, sterilization, exhaust.
6. LCD screen display shows pressure, temperature, time, running status, error codes etc.
7. Mobile probe detects to ensure the internal temperature of liquid directly, to ensure the sterilization effect of liquid program.
8. The air compressor can be optional.
9. It is equipped with liquid program, medium program, solid program.
Technical Parameters:
Model | BKQ-B50L | BKQ-B75L |
Capacity | 50L | 75L |
Designed Pressure | 0.28MPa | |
Working Pressure | 0.23MPa | |
Designed Temp. | 150℃ | |
Working Temp. | 105°C~136°C | |
Temp. Precision | 0.1℃ | |
Chamber Material | S30408 | |
Chamber Size | φ386*490mm | φ386*670mm |
Basket | φ365*265mm, 1pc | φ365*360mm, 1pc |
Noise | ≤65dB | |
Altitude | ≤2700m, please make a note when placing an order between 1000~2700 meters | |
Standard Accessories | Printer, mesh bottom basket | |
Optional Accessories | Air compressor | |
Consumption | 5.5KW | |
Power Supply | AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional) | |
External Size(W*D*H) | 700*610*1110mm | |
Net Weight | 127kg | 132kg |
Package Size(W*D*H) | 820*740*1380mm | |
Gross Weight | 140kg | 147kg |
