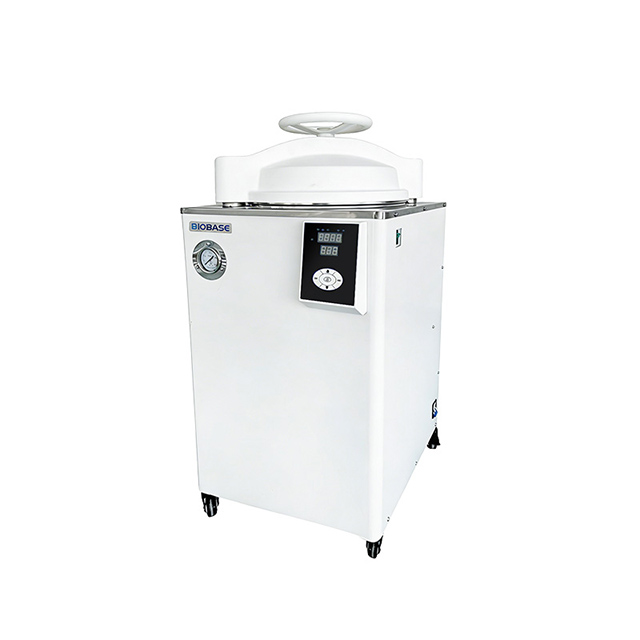

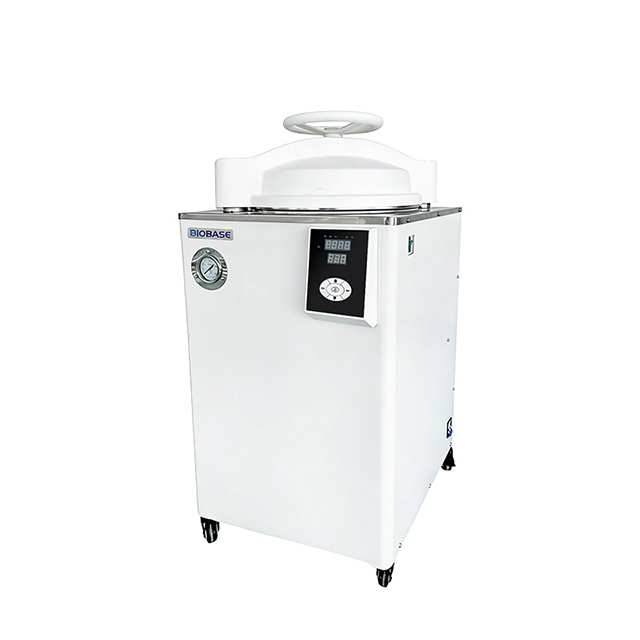

BKQ-B50J BKQ-B75J BKQ-B100J BKQ-B120J
BIOBASE
Features：
1. Equipped with an independent maintenance window for convenient servicing.
2. No external steam source required; adopts built-in heating mode.
3. Diverse programs: unwrapped program, packing program, rubber program, dressing program and custom programs.
4. Self-expanding silicone sealing ring with excellent sealing performance and long service life.
5. Single-chip microcomputer (SCM) automatically controls the process, including heating, sterilization, and exhaust, with no manual intervention required.
6. Optional printer for recording the entire sterilization process.
Technical Parameters:
Model | BKQ-B50J | BKQ-B75J | BKQ-B100J | BKQ-B120J |
Capacity | 50L | 75L | 100L | 120L |
Designed Pressure | 0.28Mpa | |||
Working Pressure | 0.23Mpa | |||
Designed Temp. | 150℃ | |||
Working Temp. | 105～136℃ | |||
Temp. Precision | ±0.1℃ | |||
Chamber Material | 304 stainless steel | |||
Chamber Size | Φ372*515mm | Φ372*700mm | Φ372*930mm | Φ372*1110mm |
Basket | φ350*355mm, 1pc | φ350*255mm, 2pcs | φ350*355mm, 2pcs | φ350*255mm, 2pcs; |
Noise | ≤65dB | |||
Altitude | ≤2700m | |||

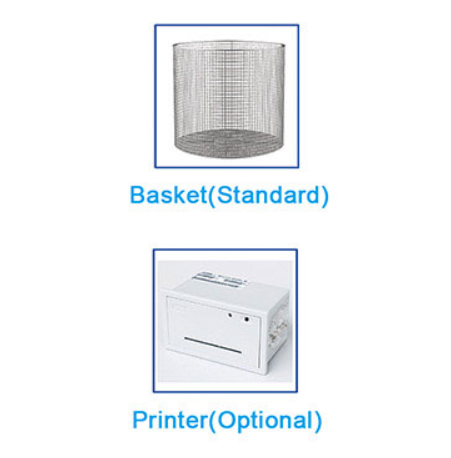

Standard Accessory | Basket | |||
Optional Accessories | Printer, stainless steel appearance | |||
Consumption | 3.5KW | 3.8KW | ||
Power Supply | AC220V, 50/60Hz(Standard); | |||
External Size(W*D*H) | 525*590*950mm | 525*590*1085mm | 525*590*1320mm | 525*590*1485mm |
Net Weight | 64kg | 66kg | 74kg | 88kg |
Package Size(W*D*H) | 750*745*1100mm | 750*745*1240mm | 750*745*1450mm | 750*745*1500mm |
Gross Weight | 104kg | 114kg | 127kg | 142kg |
