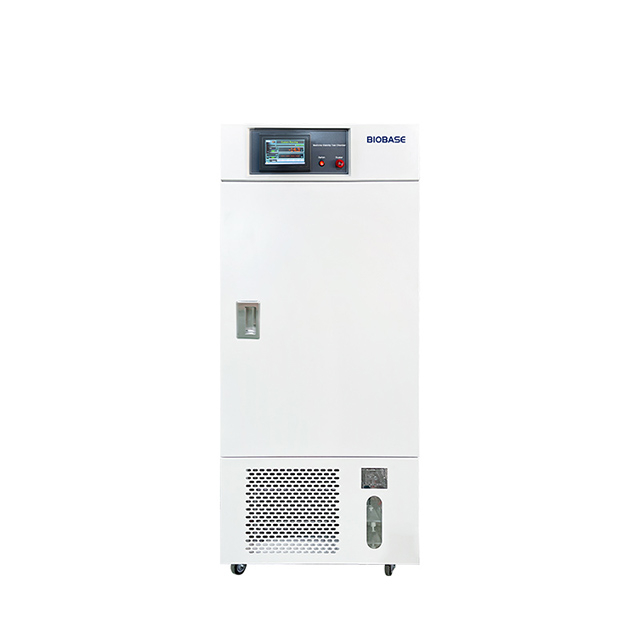

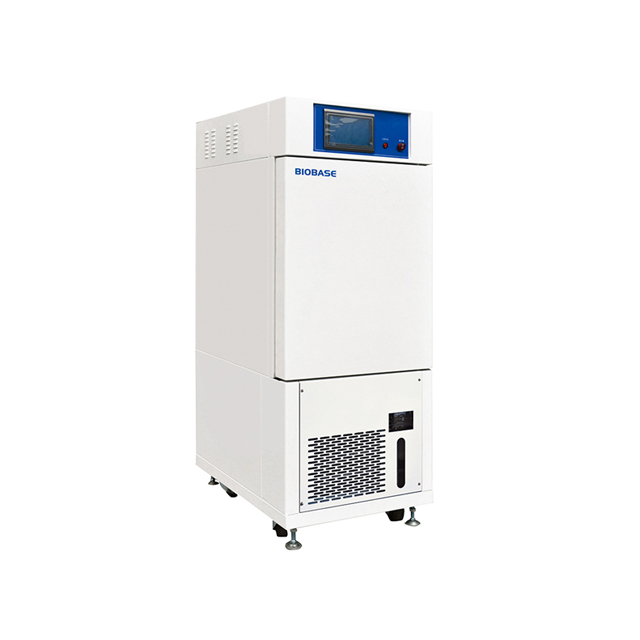

This equipment provide a long-time stable environment of temperature, humidity and illumination for the pharmaceutical industry medicine invalidation evaluation. It's applied in the medicine accelerating test, growth test, high humidity test and high illuminance test.
| Quantity: | |
|---|---|
BJPX-MS120A, BJPX-MS288A, BJPX-MS500A
BIOBASE
Features:
* P.I.D accurate and reliable temperature and humidity control.
* Built-in fan to form air circulation and improve temperature uniformity inside the cabinet.
* Built-in water tank and automatic water replenishment interface, when there is no humidification water, automatically disconnect the heated power.
* 50 pcs programs for the pharmaceuticals application.
* 600-day historical data USB export function.
* Optional: printer, external temperature protection device.
Models:
Model | BJPX-MS120A | BJPX-MS288A | BJPX-MS500A |
Display | 7 inches LCD display | ||
Capacity | 173L | 288L | 504L |
Temp. Range | -20~+65°C | ||
Temp. Fluctuation | ± 0.5°C | ||
Temp. Uniformity | ± 2°C | ||
Humidity Control Range | 40~95% RH | ||
Humidity Fluctuation | ±3% RH | ||
Illumination Level | 4500 Lux, 4 level adjustable,1-side illumination | ||
Shelves | 2 pcs adjustable | ||
Timing Range | 1~9999min | ||
Refrigeration System | R404a refrigerant CFC-free | ||
Alarm | High or low temperature alarm, temperature and humidity probe damage alarm | ||
Consumption | 2100W | 2600W | 3500W |
Power Supply | Standard: 220V±10%, 50/60Hz; Optional: 110V±10%, 60Hz | ||
Chamber Size(W*D*H) | 550*450*700mm | 600*600*800mm | 800*710*910mm |
External Size (W*D*H) | 700*842*1585mm | 800*992*1685mm | 1000*1072*1795mm |
Packing Size(W*D*H) | 810*1080*1780mm | 950*1160*1940mm | 1170*1460*2050mm |
Gross Weight | 138kg | 168kg | 250kg |
Features:
* P.I.D accurate and reliable temperature and humidity control.
* Built-in fan to form air circulation and improve temperature uniformity inside the cabinet.
* Built-in water tank and automatic water replenishment interface, when there is no humidification water, automatically disconnect the heated power.
* 50 pcs programs for the pharmaceuticals application.
* 600-day historical data USB export function.
* Optional: printer, external temperature protection device.
Models:
Model | BJPX-MS120A | BJPX-MS288A | BJPX-MS500A |
Display | 7 inches LCD display | ||
Capacity | 173L | 288L | 504L |
Temp. Range | -20~+65°C | ||
Temp. Fluctuation | ± 0.5°C | ||
Temp. Uniformity | ± 2°C | ||
Humidity Control Range | 40~95% RH | ||
Humidity Fluctuation | ±3% RH | ||
Illumination Level | 4500 Lux, 4 level adjustable,1-side illumination | ||
Shelves | 2 pcs adjustable | ||
Timing Range | 1~9999min | ||
Refrigeration System | R404a refrigerant CFC-free | ||
Alarm | High or low temperature alarm, temperature and humidity probe damage alarm | ||
Consumption | 2100W | 2600W | 3500W |
Power Supply | Standard: 220V±10%, 50/60Hz; Optional: 110V±10%, 60Hz | ||
Chamber Size(W*D*H) | 550*450*700mm | 600*600*800mm | 800*710*910mm |
External Size (W*D*H) | 700*842*1585mm | 800*992*1685mm | 1000*1072*1795mm |
Packing Size(W*D*H) | 810*1080*1780mm | 950*1160*1940mm | 1170*1460*2050mm |
Gross Weight | 138kg | 168kg | 250kg |
