Application:
This series of products are widely used in medical and health, epidemic prevention and inspection, animal husbandry research, environmental protection, agricultural scientific research and other fields.
| Quantity: | |
|---|---|

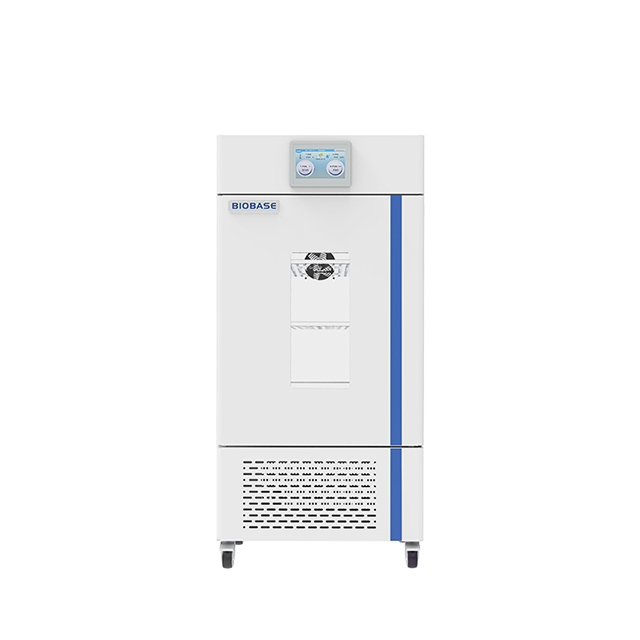

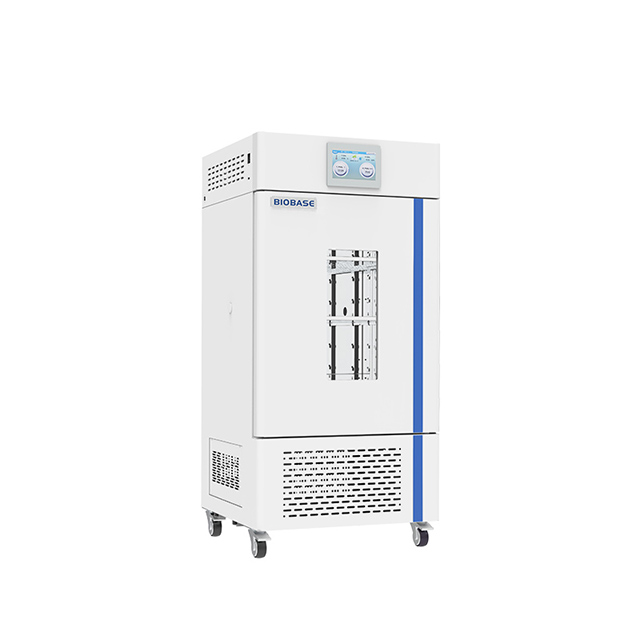

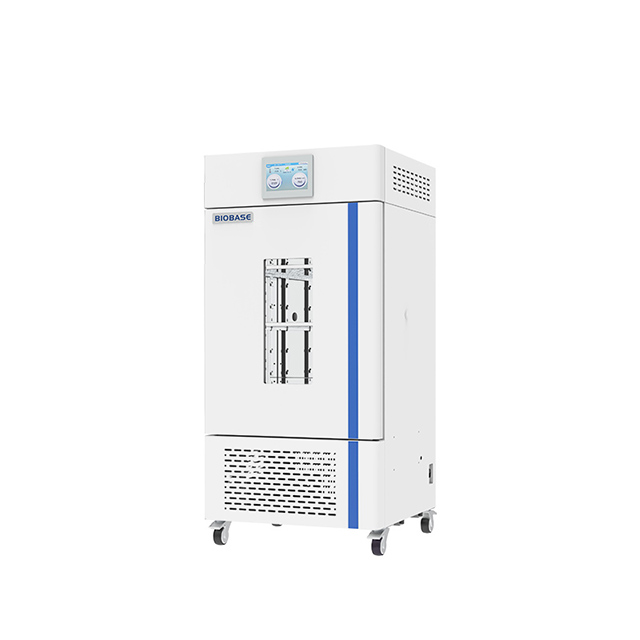

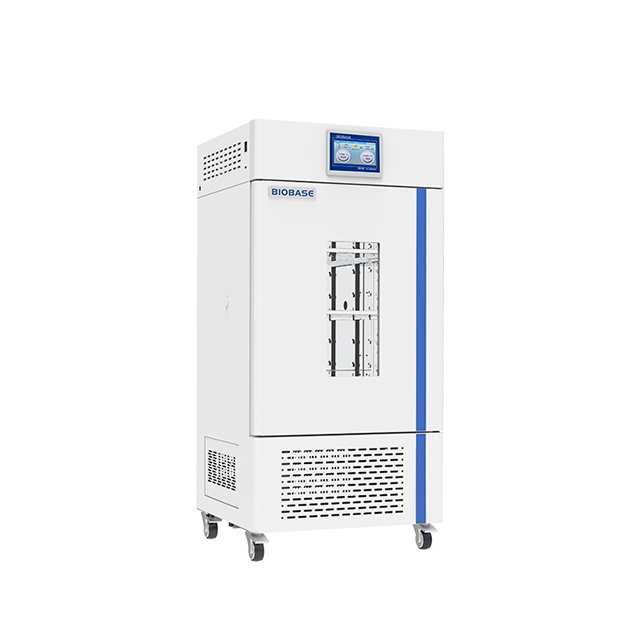

BJPX-M100P, BJPX-M150P, BJPX-M200P, BJPX-M250P
BIOBASE
Features:
1. The 7-inch LCD touch screen can monitor the temperature and humidity curves in real time, which is convenient for observation and operation.
2. Accurate control: equipped with a microcomputer temperature control system and an independent PID humidity control system.
3. Three-level operation interface authority(administrator, experimenter, operator), to prevent the operation of irrelevant personnel from causing test interruption or equipment failure.
4. Equipped with an interconnected PC interface for remote operation monitoring and optional mobile APP control program.
5. The upper and lower slices of the evaporator are automatically switched to defrost, without stopping the defrost.
6. Ultraviolet lamp sterilization, effectively prevent pollution during culture.
Technical Parameters:
Model | BJPX-M100P | BJPX-M150P | BJPX-M200P | BJPX-M250P |
Capacity(L) | 100 | 150 | 200 | 250 |
Temp. Sensor | PT100 | |||
Temp. Range | 0~60℃(Microcomputer PID control) | |||
Temp. Fluctuation | ±0.5℃ | |||
Temp. Uniformity(at 37℃) | ±1℃ | |||
Temp. Precision | 0.1℃ | |||
Timing Range(min/h) | 1~5999 | |||
Humidity Range | 50％~95％ | |||
Humidity Control Accuracy | 1%RH | |||
Humidity Control Fluctuation | ±3％~±5%RH | |||
Refrigerant | R134a(CFC-free environmentally friendly refrigerant) | |||
Sterilization Method | UV sterilization lamp(Timetable setting) | |||
Power Supply | Standard: AC220V, 50/60Hz Optional: AC110V, 60Hz | |||
Consumption | 1200W | 1200W | 1500W | 1500W |
Shelves | 2 | |||
Standard Accessories | USB interface, remote PC port | |||
Optional Accessories | External ultrasonic humidifier, printer | |||
Internal Size(W*D*H)mm | 448*405*580 | 518*418*700 | 598*445*770 | 598*447*940 |
External Size(W*D*H)mm | 635*667*1335 | 705*677*1485 | 785*767*1525 | 762*767*1637 |
Package Size(W*D*H)mm | 775*805*1515 | 845*815*1660 | 925*905*1705 | 890*905*1815 |
Net Weight(kg) | 100 | 120 | 140 | 150 |
Gross Weight(kg) | 125 | 140 | 165 | 180 |
