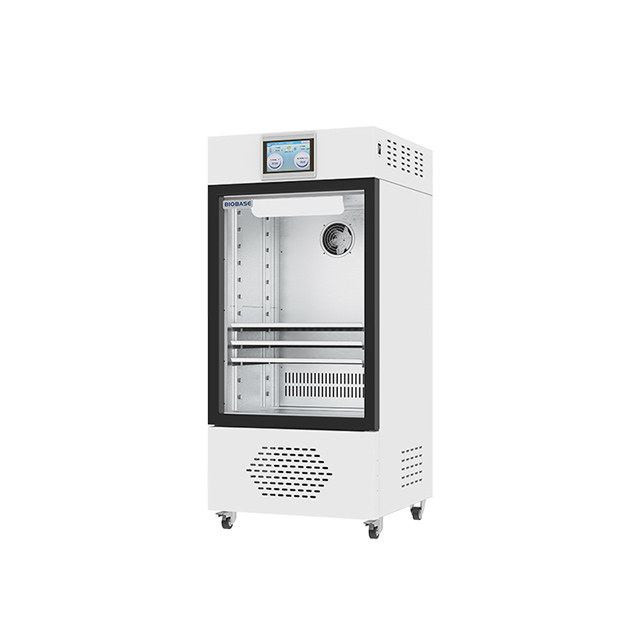

BJPX-Y100 BJPX-Y150 BJPX-Y200 BJPX-Y300
BIOBASE
Features:
1. The unique air duct design makes the temperature more uniform.
2. The non-slip separator design prevents the sample from falling off when the shelves is pulled.
3. The 7.0-inch color LCD touch screen can monitor the temperature curve in real time, and the menu-type operation interface is simple and easy to understand, which is convenient for observation and operation.
4. Three-level operation interface authority(administrator, experimenter, operator), to prevent the operation of irrelevant personnel from causing test interruption or equipment failure.
5. Equipped with an interconnected PC interface for remote operation monitoring and mobile phone APP control program.
Technical Parameters:
Model | BJPX-Y100 | BJPX-Y150 | BJPX-Y200 | BJPX-Y300 |
Capacity | 100L | 150L | 200L | 300L |
Temp. Sensor | PT100 | |||
Temp. Range | 0~100℃ | |||
Temp. Fluctuation | ≤±1℃(@37℃) | |||
Temp. Uniformity | ≤±2℃(@37℃) | |||
Temp. Precision | 0.01℃ | |||
Timing Range | 1~999h59min | |||
Control Type | Microcomputer controller | |||
Display | 7.0-inch color LCD touch screen | |||
Alarm | Audible and visual alarm; Over-temperature alarm | |||
Material | External cold-rolled steel with painting; internal stainless steel | |||
Door | Double tempered glass doors with heating function | |||
Sterilization Type | UV lamp sterilization | |||
Ambient Temp.&Humidity | 18~30℃, suggest 25±2℃; Relative humidity≤80% | |||
Caster | Universal caster | |||
Power Supply | AC220V, 50Hz(Standard); 110V, 60Hz(Optional, external transformer) | |||
Consumption | 1100W | 1200W | 1450W | |
Shelves | 3pcs/adjustable | |||
Standard Accessories | UV lamp/Lamp/USB port/LAN port | |||
Optional Accessories | Shelves | |||
Internal Size(W*D*H) | 518*400*599mm | 518*400*750mm | 518*500*832mm | 500*490*1295mm |
External Size(W*D*H) | 598*690*1229mm | 598*690*1391mm | 598*797*1475mm | 606*761*1900mm |
Packing Size(W*D*H) | 700*790*1380mm | 723*790*1540mm | 700*900*1635mm | 706*861*2054mm |
Net Weight | 90kg | 100kg | 110kg | 132kg |
Gross Weight | 115kg | 120kg | 130kg | 156kg |
Features:
1. The unique air duct design makes the temperature more uniform.
2. The non-slip separator design prevents the sample from falling off when the shelves is pulled.
3. The 7.0-inch color LCD touch screen can monitor the temperature curve in real time, and the menu-type operation interface is simple and easy to understand, which is convenient for observation and operation.
4. Three-level operation interface authority(administrator, experimenter, operator), to prevent the operation of irrelevant personnel from causing test interruption or equipment failure.
5. Equipped with an interconnected PC interface for remote operation monitoring and mobile phone APP control program.
Technical Parameters:
Model | BJPX-Y100 | BJPX-Y150 | BJPX-Y200 | BJPX-Y300 |
Capacity | 100L | 150L | 200L | 300L |
Temp. Sensor | PT100 | |||
Temp. Range | 0~100℃ | |||
Temp. Fluctuation | ≤±1℃(@37℃) | |||
Temp. Uniformity | ≤±2℃(@37℃) | |||
Temp. Precision | 0.01℃ | |||
Timing Range | 1~999h59min | |||
Control Type | Microcomputer controller | |||
Display | 7.0-inch color LCD touch screen | |||
Alarm | Audible and visual alarm; Over-temperature alarm | |||
Material | External cold-rolled steel with painting; internal stainless steel | |||
Door | Double tempered glass doors with heating function | |||
Sterilization Type | UV lamp sterilization | |||
Ambient Temp.&Humidity | 18~30℃, suggest 25±2℃; Relative humidity≤80% | |||
Caster | Universal caster | |||
Power Supply | AC220V, 50Hz(Standard); 110V, 60Hz(Optional, external transformer) | |||
Consumption | 1100W | 1200W | 1450W | |
Shelves | 3pcs/adjustable | |||
Standard Accessories | UV lamp/Lamp/USB port/LAN port | |||
Optional Accessories | Shelves | |||
Internal Size(W*D*H) | 518*400*599mm | 518*400*750mm | 518*500*832mm | 500*490*1295mm |
External Size(W*D*H) | 598*690*1229mm | 598*690*1391mm | 598*797*1475mm | 606*761*1900mm |
Packing Size(W*D*H) | 700*790*1380mm | 723*790*1540mm | 700*900*1635mm | 706*861*2054mm |
Net Weight | 90kg | 100kg | 110kg | 132kg |
Gross Weight | 115kg | 120kg | 130kg | 156kg |
