Biobase
Features:
1. High vacuum, multi-layer thermal insulation design
2. Low static evaporation rate, ultra-low evaporation loss
3. Made of high-quality alloy aluminum
4. Vacuum warranty for 5 years
5. Optional liquid level ruler
YDS-35LS(6)/YDS-35S(6)/YDS-35/YDS-35-80LS(6)/YDS-35-80S(6)/YDS-35-80/YDS-35-125-FS/YDS-35-125LS(6)YDS-35-125S(6)/YDS-35-125

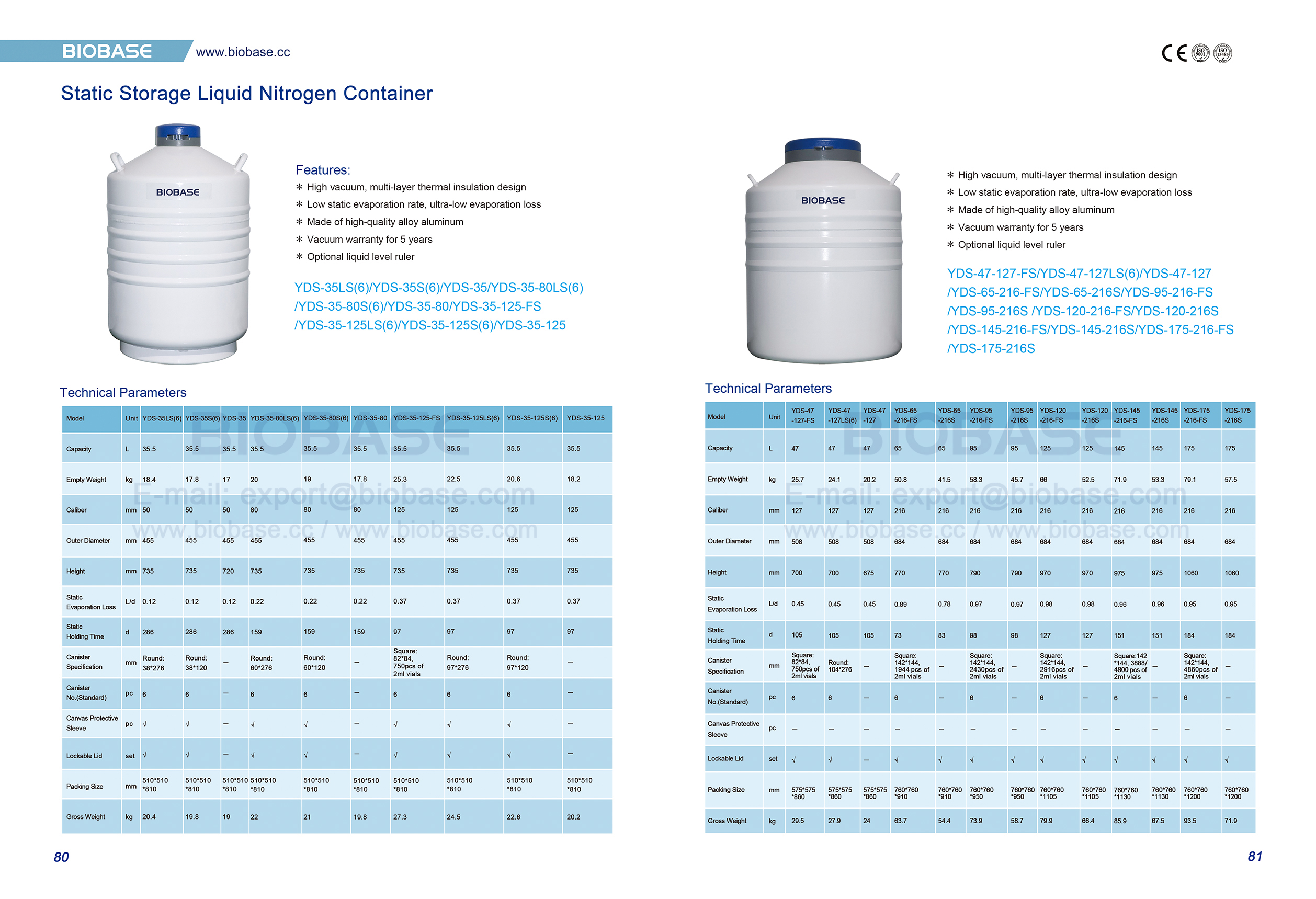

Technical Parameters:
Model | Unit | YDS-35LS(6) | YDS-35S(6) | YDS-35 | YDS-35-80LS(6) | YDS-35-80S(6) | YDS-35-80 | YDS-35-125-FS | YDS-35-125LS(6) | YDS-35-125S(6) | YDS-35-125 | YDS-47-127-FS | YDS-47-127LS(6) | YDS-47-127 | YDS-65-216-FS | YDS-65-216S | YDS-95-216-FS | YDS-95-216S | YDS-120-216-FS | YDS-120-216S | YDS-145-216-FS | YDS-145-216S | YDS-175-216-FS | YDS-175-216S |
Capacity | L | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 35.5 | 47 | 47 | 47 | 65 | 65 | 95 | 95 | 125 | 125 | 145 | 145 | 175 | 175 |
Empty Weight | kg | 18.4 | 17.8 | 17 | 20 | 19 | 17.8 | 25.3 | 22.5 | 20.6 | 18.2 | 25.7 | 24.1 | 20.2 | 50.8 | 41.5 | 58.3 | 45.7 | 66 | 52.5 | 71.9 | 53.3 | 79.1 | 57.5 |
Caliber | mm | 50 | 50 | 50 | 80 | 80 | 80 | 125 | 125 | 125 | 125 | 127 | 127 | 127 | 216 | 216 | 216 | 216 | 216 | 216 | 216 | 216 | 216 | 216 |
Outer Diameter | mm | 455 | 455 | 455 | 455 | 455 | 455 | 455 | 455 | 455 | 455 | 508 | 508 | 508 | 684 | 684 | 684 | 684 | 684 | 684 | 684 | 684 | 684 | 684 |
Height | mm | 735 | 735 | 720 | 735 | 735 | 735 | 735 | 735 | 735 | 735 | 700 | 700 | 675 | 770 | 770 | 790 | 790 | 970 | 970 | 975 | 975 | 1060 | 1060 |
Static Evaporation Loss | L/d | 0.12 | 0.12 | 0.12 | 0.22 | 0.22 | 0.22 | 0.37 | 0.37 | 0.37 | 0.37 | 0.45 | 0.45 | 0.45 | 0.89 | 0.89 | 0.97 | 0.97 | 0.98 | 0.98 | 0.96 | 0.96 | 0.95 | 0.95 |
Static Holding Time | d | 286 | 286 | 286 | 159 | 159 | 159 | 97 | 97 | 97 | 97 | 105 | 105 | 105 | 73 | 73 | 98 | 98 | 127 | 127 | 151 | 151 | 184 | 184 |
Canister Specification | mm | Round:38*276 | Round:38*120 | - | Round:60*276 | Round:60*120 | - | Square:82*84, 750pcs of 2ml vials | Round:97*276 | Round:97*120 | - | Square:82*84, 750pcs of 2ml vials | Round:104*276 | - | Square:142*144, 1944 or 2400 pcs of 2ml vials | - | Square:142*144, 2430 or 3000 pcs of 2ml vials | - | Square:142*144, 2916 or 3600 pcs of 2ml vials | - | Square:142*144, 3888 or 4800 pcs of 2ml vials | - | Square:142*144, 4860 or 6000 pcs of 2ml vials | - |
Canister No.(Standard) | pc | 6 | 6 | - | 6 | 6 | - | 6 | 6 | 6 | - | 6 | 6 | - | 6 | - | 6 | - | 6 | - | 6 | - | 6 | - |
Canvas Protective Sleeve | pc | √ | √ | - | √ | √ | - | √ | √ | √ | - | - | - | - | - | - | - | - | - | - | - | - | - | |
Lockable Lid | set | √ | √ | - | √ | √ | - | √ | √ | √ | - | √ | √ | - | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
Packing Size | mm | 502*502*795 | 502*502*795 | 502*502*795 | 502*502*795 | 502*502*795 | 502*502*795 | 502*502*795 | 502*502*795 | 502*502*795 | 502*502*795 | 550*550*830 | 550*550*830 | 550*550*830 | 760*760*910 | 760*760*910 | 760*760*950 | 760*760*950 | 760*760*1105 | 760*760*1105 | 760*760*1130 | 760*760*1130 | 760*760*1200 | 760*760*1200 |
Gross Weight | kg | 20.4 | 19.8 | 19 | 22 | 21 | 19.8 | 27.3 | 24.5 | 22.6 | 20.2 | 29.5 | 27.9 | 24 | 63.7 | 54.5 | 73.9 | 58.7 | 79.9 | 66.4 | 85.9 | 67.5 | 93.1 | 71.9 |
