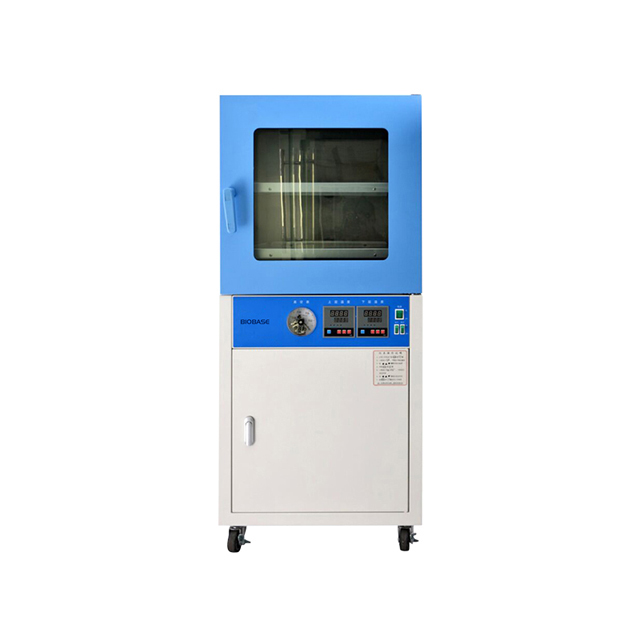

BOV-30V BOV-50V BOV-90V BOV-215V BOV-90VL BOV-215VL
BIOBASE
Features:
1. Outer material : cold rolled steel plate with spraying surface; inner material : SUS stainless steel plate.
2. PID microprocessor temperature control with LED display.
3. Integral molded silicone rubber door seal ring for good air tightness.
4. Toughened bulletproof double glazed doors.
5. With parameter memory function, automatically resume operation when power restoration.
6. The heater is located in the chamber on the shelf, and separate temperature control, with a short heating time, the same level of temperature uniformity is good.(Except BOV-30L/50L)
Technical Parameters:
Model | BOV-30V | BOV-50V | BOV-90V | BOV-215V | BOV-90VL | BOV-215VL | |
Capacity | 23L | 53L | 91L | 213L | 91L | 213L | |
Temp. Range | RT+10~200℃ | RT+10~250℃ | RT+10~200℃ | ||||
Temp. Fluctuation | ±1℃ | ||||||
Vacuum Degree | ＜133Pa | ||||||
Vacuum Display | Pointer-type vacuum pressure gauge | Pointer-type differential pressure vacuum gauge with rotatable vacuum value | LED digital display, push button input of the vacuum value | ||||
Vacuum Control | Manual control | Automatic differential pressure control | Pressure sensor+deviation control | ||||
Timing Range | 0~9999min | ||||||
Power Supply | AC 220V, 50/60Hz (Standard); 110V, 50/60Hz (Optional) (External transformer) | ||||||
Consumption | 500W | 1400W | 1600W | 2200W | 1600W | 2200W | |
Shelf | Aluminum shelf*1 | Aluminum shelf*2 | Fixed electric heating aluminum plate*2 | Fixed electric heating aluminum plate*3 | Fixed electric heating aluminum plate*2 | Fixed electric heating aluminum plate*3 | |
Standard Accessories | Shelves | Shelves, vacuum pump, vacuum tube | |||||
Optional Accessories | Vacuum pump: 2FY-2C-N (AC220V, 50Hz) or 2XZ-2(AC220V, 50Hz; 220V, 60Hz; 110V, 60Hz), vacuum tube, external temperature protection device, LCD temperature controller, LCD temperature controller+RS485, LCD temperature controller+mini dot matrix printer, RS485 to USB converter | External temperature protection device*2, LCD temperature controller*2, LCD temperature controller*2+RS485, LCD temperature controller*2+mini dot matrix printer, RS485 to USB converter(BOV-90 series); External temperature protection device*3, LCD temperature controller*3, LCD temperature controller*3+RS485, LCD temperature controller*3+mini dot matrix printer, RS485 to USB converter(BOV-215 series) | |||||
Internal Size(W*D*H) | 296*300*270mm | 416*370*346mm | 450*450*450mm | 556*600*640mm | 450*450*450mm | 556*600*640mm | |
External Size(W*D*H) | 590*492*468mm | 710*562*544mm | 611*641*1398mm | 721*794*1638mm | 611*641*1398mm | 721*794*1638mm | |
Package Size(W*D*H) | 670*610*600mm | 790*660*670mm | 710*710*1550mm | 940*810*1800mm | 710*710*1550mm | 940*810*1800mm | |
2FY-2C-N: 470*295*210mm 2XZ-2: 580*215*367mm | |||||||
Net Weight | 55kg | 67kg | 145kg | 208kg | 143kg | 207kg | |
Gross Weight | 65kg | 79kg | 171kg | 245kg | 168kg | 244kg | |
2FY-2C-N: 16.5kg 2XZ-2: 23kg | |||||||
