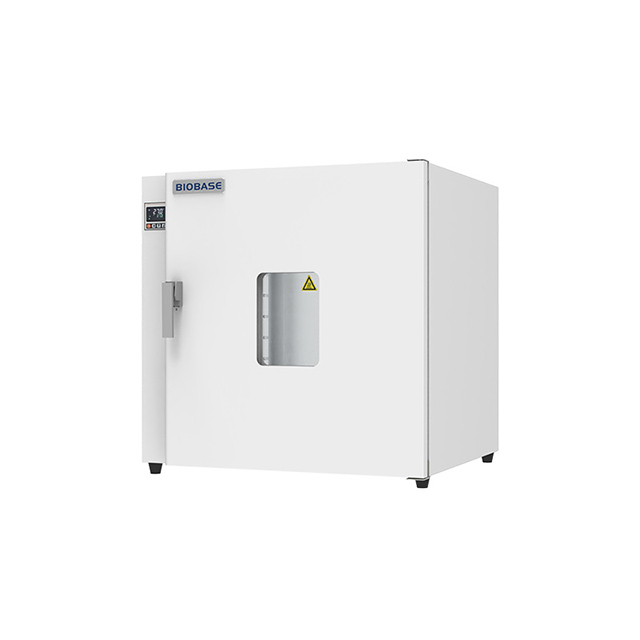

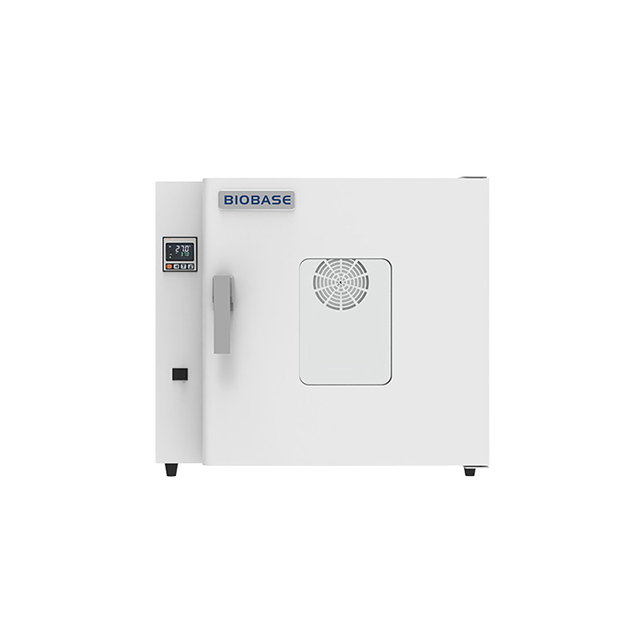

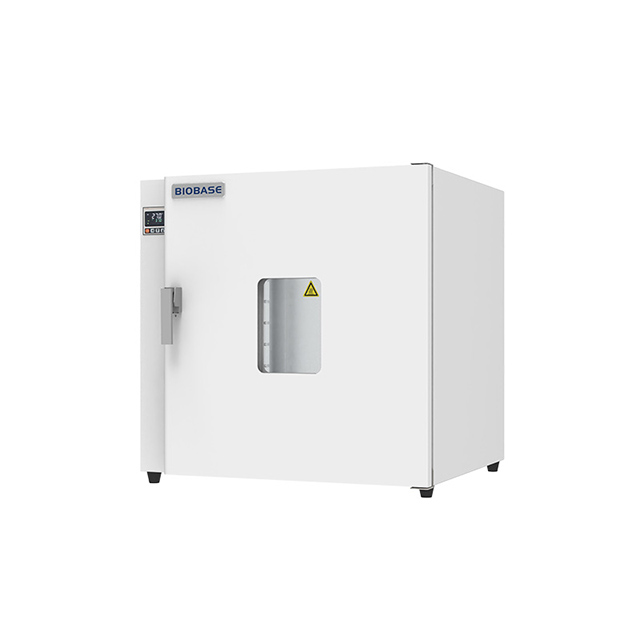

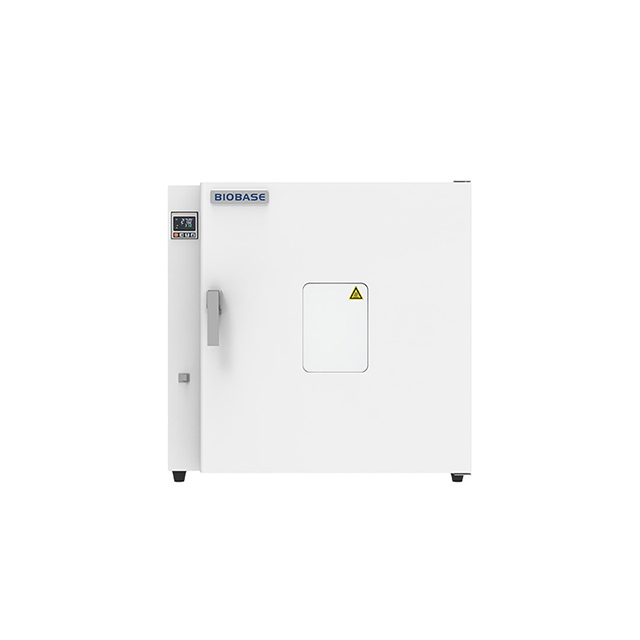

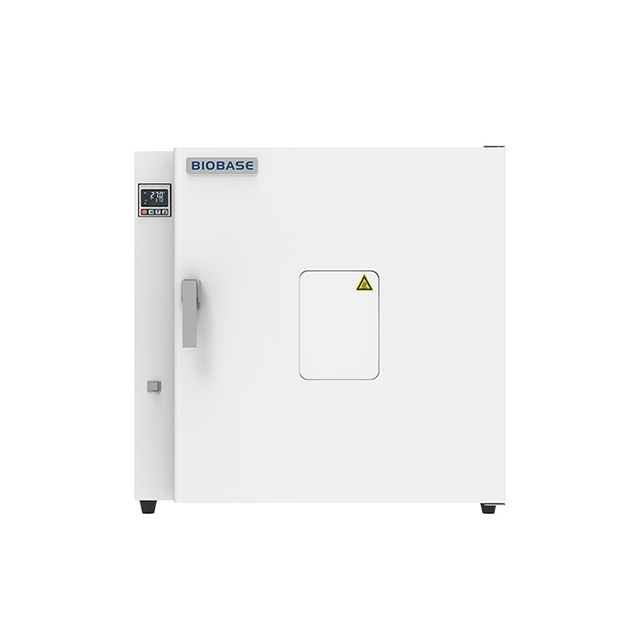

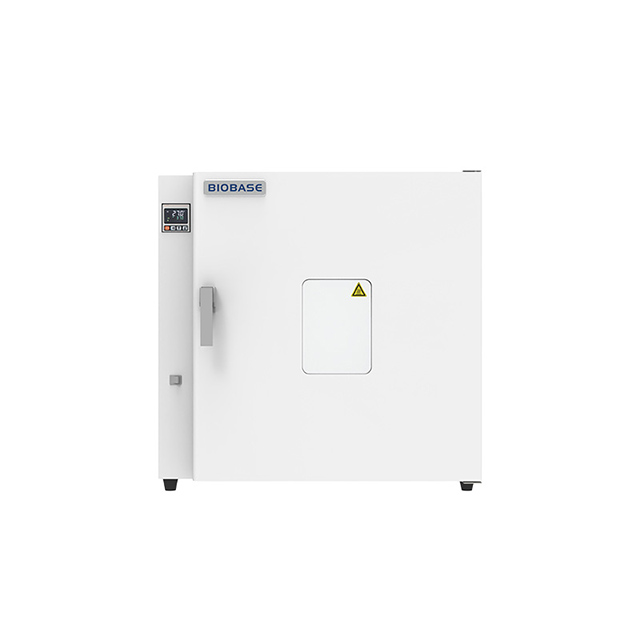

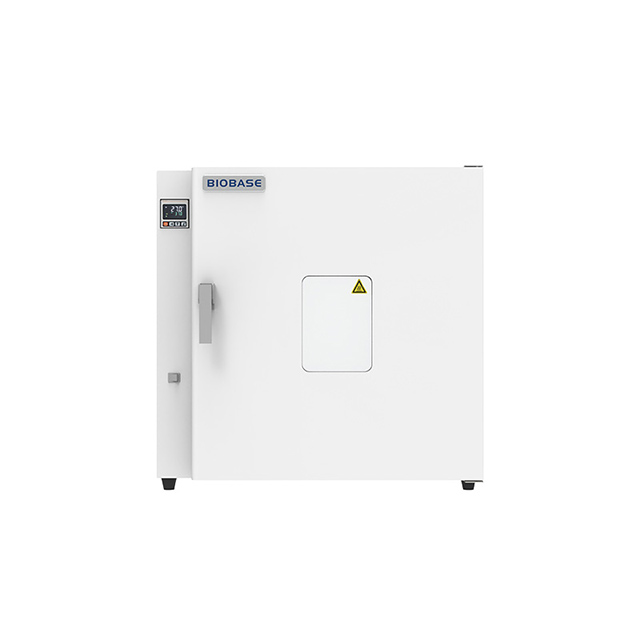

BJPX-HDO43 BJPX-HDO55 BJPX-HDO72 BJPX-HDO138 BJPX-HDO270
BIOBASE
Features
1. LCD liquid crystal temperature display, with temperature deviation calibration function.
2. Over-temperature alarm and automatic fault detection alarm function.
3. Precisely control the heating time, the timing error is ≤1%.
4. The four corners of the inner cavity are designed with a semi-circular arc structure.
5. The heating device is placed at the bottom, and a new bottom wind plate structure is adopted to facilitate the cleaning of the cavity.
Technical Parameters
Model | BJPX-HDO43 | BJPX-HDO55 | BJPX-HDO72 | BJPX-HDO138 | BJPX-HDO270 |
Capacity | 43L | 55L | 72L | 138L | 270L |
Heating Method | Bottom heating, natural convection | ||||
Temp. Range | RT+10℃-250℃ | ||||
Display | LCD display | ||||
Temp. Uniformity | ≤Max temp.±3％ | ||||
Temp. Precision | 0.1℃ | ||||
Inner Size(mm) | 350*350*350 | 370*370*459 | 400*390*450 | 500*500*550 | 600*600*750 |
External Size(mm) | 579*474*565 | 596*500*666 | 614*525*659 | 724*625*759 | 824*763*954 |
Shelves NO. | 2 | 2 | 2 | 3 | 3 |
Power Supply | Standard: 220V 50/60Hz; optional: 110V 50/60Hz | ||||
Packing Size(mm) | 640*505*595 | 656*530*696 | 674*555*689 | 784*655*789 | 884*793*984 |
Gross Weight(kg) | 35 | 40 | 50 | 70 | 90 |
