Introduction:
It uses steam as the medium, and repeatedly draws vacuum and flls the sterilization chamber with steam to make the sterilization
chamber reach a certain vacuum degree, and then flls with saturated steam to reach the set pressure and temperature to achieve
the purpose of sterilizing the sterilized items. It is mainly used in laboratories, food processing enterprises and other non-medical units for the sterilization of fabrics, rubber, instruments, laboratory utensils, culture media and non-enclosed liquids.
| Quantity: | |
|---|---|

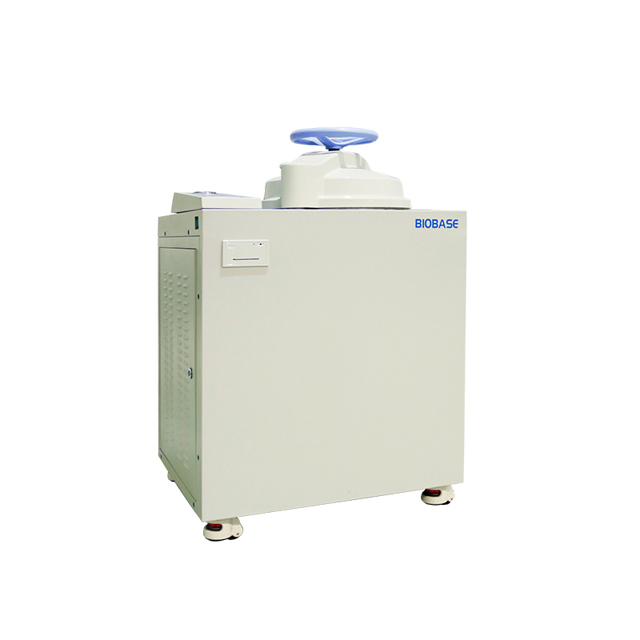

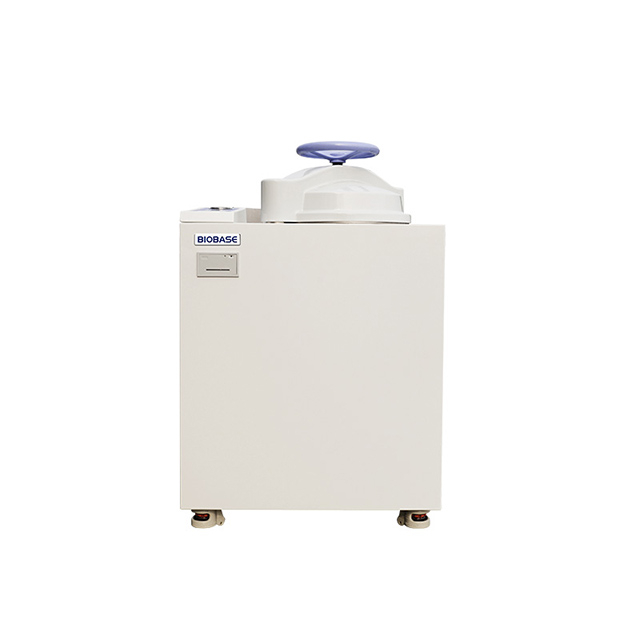

BKQ-B50V, BKQ-B75V
BIOBASE
Features:
1. Steam water internal circulation.
2. Pulse vacuum exhaust to ensure the effect of steam sterilization.
3. Mobile probe detects to ensure the internal temperature of liquid directly, to ensure the sterilization effect of liquid program.
4. LCD screen display shows pressure, temperature, time and error codes and operation curve etc.
5. Selectable programs for packed, unpacked, dressings, rubber, liquid, liquid custom, solid custom, sterilization of medium, dissolution of medium, B&D testing and vacuum testing etc.
6. Complete process of preheating, replacement, pulse exhaust, heating, sterilizing and drying run automatically.
7. 0.22μm Sterilization high efficiency air filter. The filtration efficiency is higher than 99.5%, ensuring that the vacuum-depleted air is sterile air to prevent re-pollution of sterile materials.
8. Standard built-in printer for recording the information during the entire sterilization process.
Technical Parameters:
Model | BKQ-B50V | BKQ-B75V |
Capacity | 50L | 75L |
Design Pressure | -0.1/0.28MPa | |
Design Temp. | 150℃ | |
Working pressure | 0.23MPa | |
Working Temp. | 105~134℃ | |
Temperature Control Precision | 0.1℃ | |
Chamber Material | S30408 | |
Chamber Size(mm) | φ386*490 | φ386*670 |
Basket(mm) | φ360*260, 1pc | φ360*360, 1pc |
Vacuum System | Eject vacuum system | |
Consumption | 5.5KW | |
Power Supply | Standard: 220V, 50Hz or 220V, 60Hz Optional: 110V, 50Hz or 110V, 60Hz | |
Altitude | ≤2000m Could be customized at 2000~3000m | |
Standard Accessories | Printer, basket | |
Optional Accessories | Tray, bucket | |
External Size(W*D*H)mm | 700*610*1070 | |
Package Size(W*D*H)mm | 820*740*1380 | |
Net Weight(kg) | 127 | 130 |
Gross Weight(kg) | 142 | 145 |
Features:
1. Steam water internal circulation.
2. Pulse vacuum exhaust to ensure the effect of steam sterilization.
3. Mobile probe detects to ensure the internal temperature of liquid directly, to ensure the sterilization effect of liquid program.
4. LCD screen display shows pressure, temperature, time and error codes and operation curve etc.
5. Selectable programs for packed, unpacked, dressings, rubber, liquid, liquid custom, solid custom, sterilization of medium, dissolution of medium, B&D testing and vacuum testing etc.
6. Complete process of preheating, replacement, pulse exhaust, heating, sterilizing and drying run automatically.
7. 0.22μm Sterilization high efficiency air filter. The filtration efficiency is higher than 99.5%, ensuring that the vacuum-depleted air is sterile air to prevent re-pollution of sterile materials.
8. Standard built-in printer for recording the information during the entire sterilization process.
Technical Parameters:
Model | BKQ-B50V | BKQ-B75V |
Capacity | 50L | 75L |
Design Pressure | -0.1/0.28MPa | |
Design Temp. | 150℃ | |
Working pressure | 0.23MPa | |
Working Temp. | 105~134℃ | |
Temperature Control Precision | 0.1℃ | |
Chamber Material | S30408 | |
Chamber Size(mm) | φ386*490 | φ386*670 |
Basket(mm) | φ360*260, 1pc | φ360*360, 1pc |
Vacuum System | Eject vacuum system | |
Consumption | 5.5KW | |
Power Supply | Standard: 220V, 50Hz or 220V, 60Hz Optional: 110V, 50Hz or 110V, 60Hz | |
Altitude | ≤2000m Could be customized at 2000~3000m | |
Standard Accessories | Printer, basket | |
Optional Accessories | Tray, bucket | |
External Size(W*D*H)mm | 700*610*1070 | |
Package Size(W*D*H)mm | 820*740*1380 | |
Net Weight(kg) | 127 | 130 |
Gross Weight(kg) | 142 | 145 |
